Oil Tanker Discharge Valve API 3 Inch Adaptor for -20 to 70 Degree Celsius Media Temperature and 0.6 Mpa Pressure
| MOQ: | 1 |
| Price: | $120/sets 1-9 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Application:
General
Port Size:
3 Inch
Warranty:
12 Months
Place Of Origin:
Hubei, China
Model Number:
HT.XYF806-4
Power:
Manual
Temperature Of Media:
-20 To 70 Degree Celsius
Brand Name:
HUATE
Structure:
BALL
Media:
Oil
Customized Support:
OEM, ODM, OBM
Voltage:
/
Connection Size:
1
Operational Pressure Range:
/
Product Name:
3 Inch API Adapter Valve
Material:
Aluminum Alloy
Usage:
Oil Drain
Seal Material:
Aluminum Alloy
Working Pressure:
0.6 Mpa
Working Medium:
Gasoline And Diesel, And Up To E20 And B100 Biofuels
Working Temperature:
Standard: -20 C~70 C
Highlight:
API oil tanker discharge valve
,3 inch oil tanker adaptor
,high-pressure oil valve for tankers
Product Description

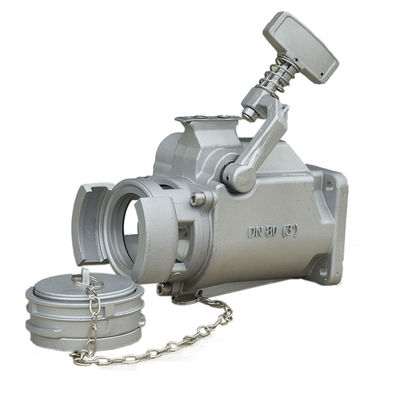

Oil Tanker Discharge Valve API 3 Inch Adaptor
Designed for bottom loading and unloading of petroleum tankers, this French Style API Adapter permits both terminal loading and fuel unloading through the valve. Engineered for maximum safety, high flow, and low-pressure drop, it offers easy maintenance and long service life.
Key Features
- French Style API Discharge Valve design
- Unique fluid flow sight level indicator
- Ergonomically curved handle operates on a short 62° stroke
- Simplified maintenance - valves can be completely rebuilt without removal from tanker
- Ideal for oil companies and petroleum product transporters
Technical Specifications
| Name | French Style API Discharge Valve |
|---|---|
| Model | HY.XYF806 |
| Diameter | DN80 |
| Material | Aluminum Alloy |
| Pressure | 0.6 Mpa |
| Control Mode | Manual |
| Fuel Compatibility | Gasoline, diesel, and up to E20 and B100 biofuels |
| Operating Temperature | -20 to 70°C |
