Frozen Food Transport Made Easy with Foton 4.2 Meters Refrigerated Truck Euro 3 Emission Standard Guaranteed Performance
| MOQ: | 1 |
| Price: | $22,800/bags |
| Standard Packaging: | Wooden box |
| Delivery Period: | 30 |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Suizhou China
Brand Name
HUATE
Certification
CCC
Model:
BJ5048XLC-F3
Transmission Type:
Manual
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 3
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
5995x2250x3250(mm)
Box Dimensions (L X W X H) (mm):
4085x2100x2100(mm)
Temperature Range:
0- -18
Gross Vehicle Weight:
≤5T
After-sales Service Provided:
Provide Lifelong Technical Service Sup
Maximum Torque(Nm):
≤500Nm
Capacity (Load):
1-10T
Engine Capacity:
< 4L
Product Name:
Refrigerator Car
Application:
Transport Freezer Food
Chassis Brand:
FOTON Omar
Brand:
Refrigerator Truck Transport Ice Cream
Type:
Refrigator Truck
Name:
Refrigator Truck
Drive Type:
4x2 LHD
Loading Capacity:
3-5t
Key Words:
Referigration Truck
Highlight:
Foton refrigerated truck Euro 3
,4.2 meters frozen food transport
,refrigerated box truck with warranty
Product Description

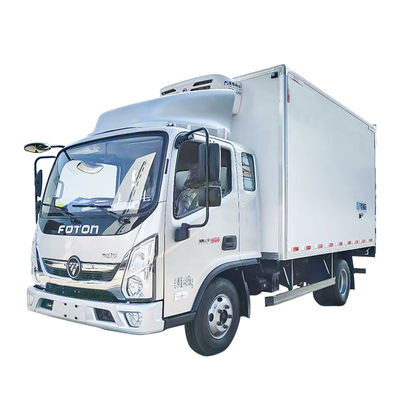

Foton 4.2 Meters Refrigerated Truck - Euro 3 Emission Standard
Construction & Insulation Features
- Steel-wood structure with broken bridge insulation technology
- Galvanized pipe frame for enhanced durability
- High-quality glass fiber reinforced plastic interior and exterior (non-light absorption, excellent thermal insulation, strong hardness, anti-oxidation)
- 8cm thick XPS extruded polystyrene board insulation filling
- High-strength adhesive with positive press hot pressing molding
- Fully automated gluing and pressing process for even application and efficient production
Interior & Body Features
- Wear-resistant plastic steel pattern plate flooring
- 15cm apron on inner side of the box
- Right-angle edging inside the box for easy cleaning
- Front drainage hole for moisture management
- Labyrinth rubber sealing strip on door edges
- Bright stainless steel door frame
- Thickened aluminum alloy edging around car body
- Stainless steel corner wrapping, door lock hinges, locks and hinges
- Energy-efficient LED lighting inside the vehicle
Temperature Performance
| Front Space Temperature | -25℃ |
| Rear Space Temperature | -25℃ |
Applications & Capabilities
Our refrigerated trucks are modified from high-quality Class II chassis and are ideal for preserving and freezing various products including:
- Vegetables, fruits and vegetables
- Beef and mutton
- Low-temperature dairy products
- Bean products
- Other temperature-sensitive goods for long-distance transportation
These vehicles can also serve as mobile fresh-keeping warehouses for long-term storage of all temperature-sensitive products.
System Components
The refrigerated truck consists of three main components:
- Car chassis
- Insulation box
- Refrigeration unit (including compressor, condenser, evaporator, temperature controller, refrigerant, refrigerant transmission pipeline, belt, drainage pipe, temperature sensor, etc.)
With over 10 years of experience in refrigeration vehicle production and continuous technical research and development, our company has achieved the optimal configuration of chassis, insulation box, and refrigeration unit, ensuring superior overall vehicle performance with stable and reliable quality.
