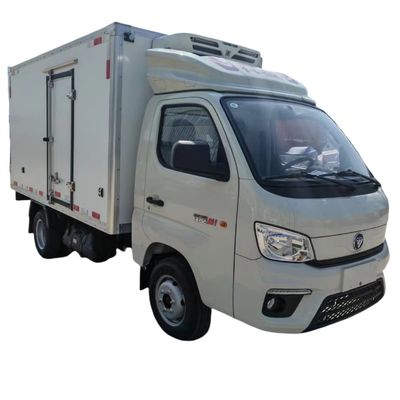

National VI Foton Xiangling M1 Refrigerated Truck ≤5T Gross Vehicle Weight and Perfect for Cold Chain Transportation
Products
Contact Us
|
National VI Foton Xiangling M1 Refrigerated Truck ≤5T Gross Vehicle Weight and Perfect for Cold Chain Transportation
| MOQ: | 1 |
| Price: | $30,000/units 1-29 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
China
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 4
Fuel Type:
Gasoline
Dimensions (L X W X H) (mm):
3050*1630*1670
Gross Vehicle Weight:
≤5T
After-sales Service Provided:
Onsite Installation, Video Technical Support, Online Support
Maximum Torque(Nm):
≤500Nm
Capacity (Load):
1-10T
Engine Capacity:
< 4L
Color:
Custom's Requirement
Product Description
Products Description
Product Paramenters
Vehicle technical parameters | |||||||
Product na me | Refrigerated Truck | Product model | HTT5031XLC5JV4-51 | ||||
Total mass (Kg) | 3495 | Production add ress | Suizhou City, Hubei Province | ||||
Rated load weight (K g) | 1615 | Overall dimens ions (mm) | 5070 * 1765 * 2490 | ||||
Quality of preparati on (Kg) | 1750 | Axle Load | 1225/2270 | ||||
Number of people in the cab (p ersons) | 2,3 | Number of shaf ts | 2 | ||||
Approach A ngle/depar ture Angle (。) | 22/20 | Front overhang /rear overhang (mm) | 1075/1245 | ||||
Wheelbase | 2400275 0 | Maximum speed (Km/h) | 110 | ||||
Chassis technical parameters | |||||||
Chassis mo del number | BJ1031V5JV4-51 | Chassis brand | Truck chassis | ||||
Number of shafts | 2 | Number of tire s | 6 | ||||
Tire Speci fications | 175R14LT 8PR | ||||||
Number of leaf sprin g pieces | 3/5, 2/3, 3, 3 | ||||||
Front whee l base (m m) | 1320 | Rear wheel bas e (mm) | 1280 | ||||
Type of fu el | Diesel | Anti-lock brak ing system | There are | ||||
Chassis wh eelbase | 3300385 0 | Fuel consumption | 8.3, 8.7 | ||||
Emission standards | GB18352.6-2016 Country VI | ||||||
Engine model | Displacement (ml) | Power (Kw) | |||||
DAM15KL | 1498 | 85 | |||||
After-sales service: If there is a after-sales problem, contact our customer service s taff in time, we will contact the staff in time to solve it for you | |||||||
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a “ national high-tech “ enterprise and “ SRDI” enterprise. Our company was founded in February 2009 , located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China. Huate main products: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series ,sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products. We have professional technical team, strong and experienced management team, efficient domestic and overseas sales team . Huate products not only lead the domestic advanced level, but also towards the international market, forming a diversified and serialized product pattern. Huate is driven by innovation , market-oriented and brand-led . It constantly improve product quality and management level, our company has fully passed the GB/T19001-2016 idt ISO9001:2015 quality system certificate and GB/T24001-2016 idt ISO14001:2015 environmental system certificate and GB/T45001-2020 idt ISO45001:2018 occupation health safety system certificate .Our products has passed international 3C compulsory certificate and tank container CCS certificate , with a number of invention patents . We have participated in the drafting of various national standards and industry standards. The company adheres to the business philosophy of "Create industry quality products. Strive to be an industry pioneer" , based on the design and manufacturing of intelligent and digital core components, we provide clients with intelligent solutions. With its differentiation and cost-effective advantages, we provide users with superior and mutually beneficial and win-win cooperation platform. Currently our products have been exported to Africa Middle East Southeast Asia America Europe more than 30 countries , well received by domestic and foreign users with favorable comments .
Manufacturing Technique
Certifications
Customer Photos
Project Show
Product packaging
FAQ
Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.
Q5. How to trust us ?
Our company pass BV factory audit,And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
