Oil Double Hoses Truck-Mounted Hydraulic Reels with Spring Driven Auto Reactaing and 30Mpa Max Pressure
| MOQ: | 1 |
| Price: | $950/sets 1-9 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
HUATE
Model Number
HT.GKD
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Standard
Product Name:
Electric Dual Hydraulic Hose Reels High Pressure Spring Driven
Suit For:
Aerial Work Vehicle,Forklift,off-Road Vehicle
Material:
Carbon Steel
Max Pressure:
30Mpa
Driving Method:
Spring Dirven
Oil Channel:
Dual
Oil Pipe Size:
1/4 Inch
Package:
Carbon
Tube Retracting Method:
Automatic Retracting
Use:
Oil
Application:
Aerial Work Vehicle,Forklift,off-Road Vehicle
Highlight:
truck-mounted hydraulic reels with spring retraction
,oil double hoses hydraulic reels 30Mpa
,high-pressure hydraulic reels for special vehicles
Product Description
Oil Double Hoses Truck-Mounted Hydraulic Reels with Spring Driven Auto Retracting and 30Mpa Max Pressure
Product Overview
Hydraulic hose reels with factory-lubricated one-piece power spring make installation safer and maintenance easier. Ideal for various cranes and forklifts. Stainless latch parts are available as standard, with options for full stainless steel construction and non-standard customization.
Key Features
- Heavy duty all-steel construction
- Designed for two single hoses with larger diameter and length capacity
- Available in Left or Right versions
- Secure fixation via mounting flange
- Self-winding with permanent spring force
- Full flow shaft swivels for optimal performance
- Swivel and reel ball bearings reduce torque load for smooth retraction
- Corrosion resistant sealed bearings minimize maintenance
- Adjustable guide arm for wall, floor, vehicle, or overhead positions
- Narrow design maximizes space utilization
Technical Specifications
| Weight | 41 kg - 49kg |
|---|---|
| Hose I.D. | 1/4" |
| Hose O.D. | 1/2" |
| Hose Length | 15.5-25M (Customized) |
| Pressure | 30 Mpa |
| Hose End | 3/8" NPT(M) |
| Inlet | 3/8" NPT(M) |
| Reel Outlet | M14 x 1.5 H NPT(M) |
| Hose Included | Yes |
| Operate Temperature | -40 to 80°C |

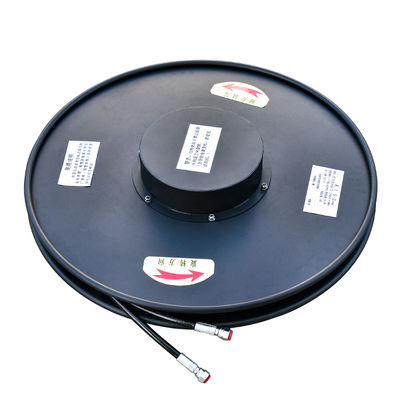

Product Gallery
