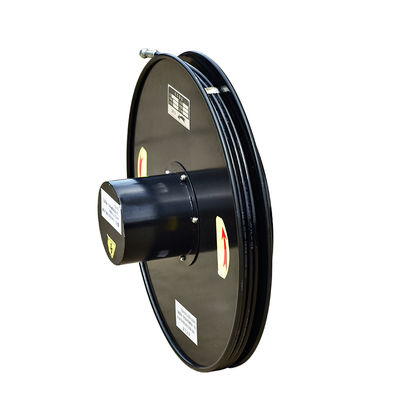

Customized Length Electric Spring Driven High Pressure Hydraulic Hose Reel 1/4" Diameter Air Oil Double Hose for Forklift
| MOQ: | 1 |
| Price: | $950/sets 1-9 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
HUATE
Model Number
HT.GK06
Working Voltage:
220V
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Standard
Product Name:
Electric Dual Hydraulic Hose Reels High Pressure Spring Driven
Suit For:
Aerial Work Vehicle,Forklift,off-Road Vehicle
Material:
Carbon Steel
Max Pressure:
30Mpa
Driving Method:
Spring Dirven
Voltage:
220V
Oil Channel:
Dual
Oil Pipe Size:
1/4 Inch
Package:
Carbon
Tube Retracting Method:
Automatic Retracting
Use:
Oil
Application:
Aerial Work Vehicle,Forklift,off-Road Vehicle
Highlight:
custom length hydraulic hose reel
,high pressure forklift hose reel
,1/4 inch air oil double hose
Product Description
Customized Length Electric Spring Driven High Pressure Hydraulic Hose Reel
1/4" Diameter Air Oil Double Hose for Forklift
Product Description
Our hydraulic hose reels feature factory-lubricated one-piece power springs for safer installation and easier maintenance. Designed for cranes and forklifts, these reels offer stainless steel latch parts as standard with customization options available.
Key Features
- Heavy-duty all-steel construction for maximum durability
- Accommodates two single hoses with larger diameters and extended lengths
- Available in left or right configurations with mounting flange fixation
- Self-winding operation with permanent spring force
- Full flow shaft swivels for optimal performance
- Swivel and reel ball bearings reduce torque load for smooth retraction
- Corrosion-resistant sealed bearings minimize maintenance
- Adjustable guide arm for wall, floor, vehicle, or overhead mounting
- Space-saving narrow design maximizes available workspace
Technical Specifications
| Specification | Value |
|---|---|
| Weight | 41 kg - 51 kg |
| Hose I.D. | 1/4" |
| Hose O.D. | 1/2" |
| Hose Length | 15.5 - 25M (Customized) |
| Pressure | 30 Mpa |
| Hose End | 3/8" NPT(M) |
| Inlet | 3/8" NPT(M) |
| Reel Outlet | M14 x 1.5 H NPT(M) |
| Hose Included | Yes |
| Operating Temperature | -40 to 80°C |
