Working Voltage 220V Spring Driven Hydraulic Hose Reel for Aerial Work Vehicle Crane 30Mpa 1/4'' Diameter Air Oil Double Hose
| MOQ: | 1 |
| Price: | $950/pieces 1-9 pieces |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
HUATE
Model Number
HT.GK03
Pump:
/
Material:
/, Carbon Steel
Power:
/
Accuracy:
/
Nozzle:
/
Ambient Temperature:
/
Working Voltage:
220V
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Standard
Product Name:
Electric Dual Hydraulic Hose Reels High Pressure Spring Driven
Suit For:
Aerial Work Vehicle,Forklift,off-Road Vehicle
Max Pressure:
30Mpa
Driving Method:
Spring Dirven
Voltage:
220V
Oil Channel:
Dual
Oil Pipe Size:
1/4 Inch
Package:
Carbon
Tube Retracting Method:
Automatic Retracting
Highlight:
220V hydraulic hose reel
,spring driven hose reel for cranes
,30Mpa air oil double hose
Product Description

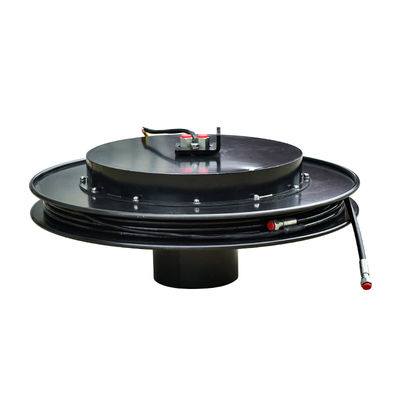

220V Spring Driven Hydraulic Hose Reel for Aerial Work Vehicle Crane
Product Overview
This heavy-duty hydraulic hose reel features a factory-lubricated one-piece power spring for safer installation and easier maintenance. Designed for cranes and forklifts, it offers superior performance with stainless steel latch parts available as standard. Custom stainless steel and non-standard configurations are available upon request.
Key Features
- Heavy-duty all-steel construction
- Accommodates two single hoses with larger diameter and length
- Available in Left or Right versions
- Mounting flange fixation
- Self-winding with permanent spring force
- Full flow shaft swivels
- Swivel and reel ball bearings reduce torque load for smooth retraction
- Corrosion resistant with sealed bearings
- Adjustable guide arm for wall, floor, vehicle, or overhead positions
- Narrow design maximizes space utilization
Technical Specifications
| Specification | Value |
|---|---|
| Weight | 41 kg - 51kg |
| Hose I.D. | 1/4" |
| Hose O.D. | 1/2" |
| Hose Length | 15.5-25M (Customizable) |
| Pressure | 30 Mpa |
| Hose End | 3/8" NPT(M) |
| Inlet | 3/8" NPT(M) |
| Reel Outlet | M14 x 1.5 H NPT(M) |
| Hose Included | Yes |
| Operating Temperature | -40 to 80°C |
Product Gallery
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and accessories. Established in 2009 and located in Suizhou, Hubei province, we hold ISO 9001, ISO 14001, and ISO 45001 certifications, along with numerous patents and participation in national standard development.
Our product range includes dangerous goods tank trucks, tank containers, chemical storage tanks, refrigerated trucks, testing vehicles, emergency rescue vehicles, and specialized vehicle components. With exports to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe, we are committed to creating industry-leading quality products and intelligent solutions.
Manufacturing Process
Certifications
Frequently Asked Questions
Q1. What are your payment terms?
T/T: 30% deposit, 70% balance before delivery. L/C available at higher price. We provide photos and video of finished products before final payment.
Q2. What delivery terms do you offer?
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP. We primarily handle FOB, CIF, and DAF.
Q3. What is your typical delivery time?
10-20 days after receiving advance payment. Right-hand drive vehicles require longer lead time than left-hand drive. Exact terms specified in contract.
Q4. What is your quality warranty?
12-month warranty with free spare parts. All products undergo 100% testing before delivery, manufactured according to state special trucks technical specifications.
Q5. How can we verify your company?
We've passed BV factory audit and welcome third-party inspections. With 15+ years in the industry, we have extensive experience with all truck types.
Q6. Can we visit your factory?
Our factory is in Suizhou City, Hubei Province. Visitors can arrive in Wuhan (provincial capital) where we provide transportation from railway station or airport. Invitation letters available upon request.
