OEM Supported Italy Style Aluminum Alloy API Discharge Valve for Tanker Truck -20℃ - 70℃ Customizable
| MOQ: | 1 |
| Price: | $120/sets 1-49 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Application:
General
Port Size:
3 Inch
Warranty:
12 Months
Place Of Origin:
Hubei, China
Model Number:
HT.XYF807-4
Power:
Manual
Temperature Of Media:
-20 To 70 Degree Celsius
Brand Name:
HUATE
Structure:
BALL
Media:
Oil
Customized Support:
OEM, ODM, OBM
Product Name:
3 Inch API Adapter Valve
Material:
Aluminum Alloy
Usage:
Oil Drain
Seal Material:
Aluminum Alloy
Working Pressure:
0.6 Mpa
Working Medium:
Gasoline And Diesel, And Up To E20 And B100 Biofuels
Working Temperature:
Standard: -20 C~70 C
MOQ:
1
Highlight:
OEM aluminum alloy API discharge valve
,Italy style tanker truck valve
,customizable discharge valve -20C to 70C
Product Description

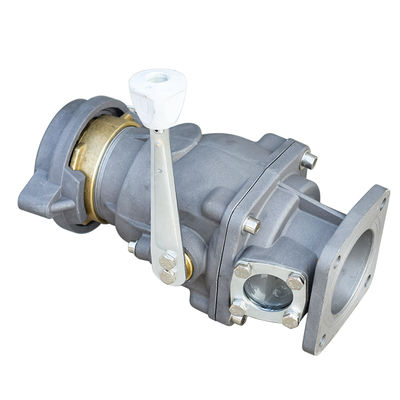

OEM Supported Italy Style Aluminum Alloy API Discharge Valve for Tanker Truck (-20°C to 70°C, Customizable)
The Italy Style API Adapters are engineered for efficient bottom loading and unloading of petroleum tankers. These valves enable both terminal loading and fuel unloading operations through a single valve system, designed for maximum safety, high flow rates, and low-pressure drop.
Key Features
- Italy Style API Discharge Valve design for petroleum applications
- Unique fluid flow sight level indicator
- Ergonomically curved handle operates on a short 62° stroke
- Simplified maintenance - valves can be completely rebuilt without removal from tanker
- Durable construction for long service life
- Ideal for oil companies and petroleum product transporters
Technical Specifications
| Name | French Style API Discharge Valve |
|---|---|
| Model | HY.XYF807 |
| Diameter | DN80 |
| Material | Aluminum Alloy |
| Pressure | 0.6 Mpa |
| Control Mode | Manual |
| Fuel Compatibility | Gasoline, diesel, and up to E20 and B100 biofuels |
| Operating Temperature | -20°C to 70°C |
