European Standard 4 Inch Emergency Shut Off Valve for Fuel Tanker Truck Tanker Bottom Valve Work Pressure 0-0.6Mpa
| MOQ: | 1 |
| Price: | $100/sets 1-49 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China, Hubei,China
Brand Name
Huate
Model Number
HY.XYFL03-2
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Type:
Standard
Product Name:
Fuel Tanker Truck Bottom Valve
Suit For:
Tanker Truck Or Semi Trailer
Medium:
Light Fuel
Material:
Aluminum Alloy
Work Pressure:
0-0.6Mpa
Inlet Size:
4 Inch
Operation Mode:
Pneumatic
MOQ:
1
Package:
Carton Package
Use:
Oil
Application:
Fuel Tanker Truck
Highlight:
European Standard fuel tanker shut off valve
,4 inch emergency tanker bottom valve
,0-0.6Mpa pressure fuel truck valve
Product Description

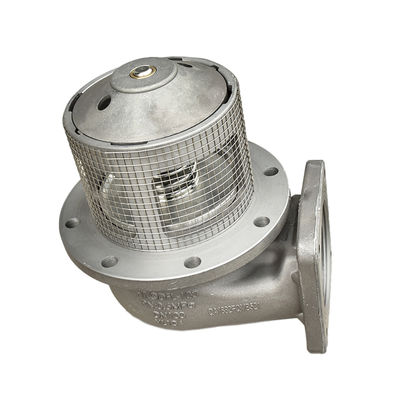

European Standard 4 Inch Emergency Shut Off Valve for Fuel Tanker Truck
Our emergency valves provide reliable flow control at the bottom of tank truck compartments in accident scenarios. Engineered with high-quality materials and robust design principles to maximize safety and performance.
Key Features
- Lightweight aluminum alloy construction for durability and corrosion resistance
- Die-cast body with high-quality component materials
- High lift poppet design for maximum flow capacity
- Double O-ring seals on camshaft for superior sealing and easy maintenance
- Removable bonnet assembly enables seal replacement without valve removal
- Standard screen filter on 3" models to prevent seal damage
- Viton seals standard for compatibility with high-octane fuels and additives
Technical Specifications
| Product Name | 4" Aluminium Alloy Tanker Truck Pneumatic Emergency Shut Off Valve |
|---|---|
| Model | HY.XYFL03 |
| Diameter | DN100 |
| Material | Aluminum Alloy |
| Pressure Rating | 0-0.6 Mpa |
| Control Mode | Pneumatic |
| Fuel Compatibility | Gasoline, diesel, and up to E20/B100 biofuels |
| Operating Temperature | -20°C to 70°C |
