4 Inch Bottom Pneumatic Emergency Shut off Valve for Fuel Tanker Truck Working Voltage 0-0.6Mpa and Work Pressure 0-0.6Mpa
| MOQ: | 1 |
| Price: | $100/sets 1-49 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China, Hubei,China
Brand Name
Huate
Model Number
HY.XYFL03-1
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Type:
Standard
Product Name:
Fuel Tanker Truck Bottom Valve
Suit For:
Tanker Truck Or Semi Trailer
Medium:
Light Fuel
Material:
Aluminum Alloy
Work Pressure:
0-0.6Mpa
Inlet Size:
4 Inch
Operation Mode:
Pneumatic
MOQ:
1
Package:
Carton Package
Use:
Oil
Application:
Fuel Tanker Truck
Highlight:
4 inch pneumatic emergency shut off valve
,fuel tanker truck shut off valve
,pneumatic valve with 0-0.6Mpa pressure
Product Description

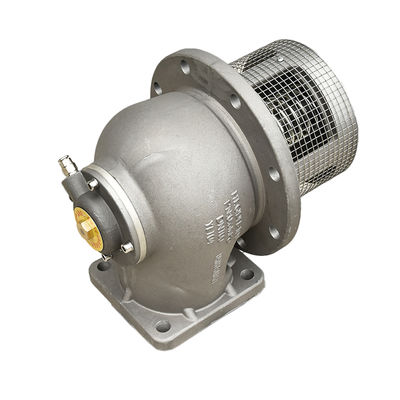

4 Inch Bottom Pneumatic Emergency Shut off Valve for Fuel Tanker Truck
Working Voltage: 0-0.6Mpa | Work Pressure: 0-0.6Mpa
Our emergency valves provide reliable flow control at the bottom of tank truck compartments during emergency situations. Engineered with high-quality materials and robust design principles to ensure maximum safety and performance.
Key Features
- Lightweight construction: Made from durable aluminum alloy
- Premium materials: Diecast body with high-quality components
- Optimized flow: High lift poppet design for maximum throughput
- Enhanced sealing: Double O-ring seals on camshaft for improved performance
- Easy maintenance: Removable bonnet assembly allows seal replacement without valve removal
- Protection: Screen filter included (standard on 3" models) to prevent seal damage
- Fuel compatibility: Viton seals standard for use with high-octane fuels and additives
Technical Specifications
| Name | 4" Aluminium Alloy Tanker Truck Pneumatic Emergency Shut Off Valve |
|---|---|
| Model | HY.XYFL03 |
| Diameter | DN100 |
| Material | Aluminum Alloy |
| Pressure | 0-0.6 Mpa |
| Control Mode | Pneumatic |
| Fuel Compatibility | Gasoline, diesel, and up to E20 and B100 biofuels |
| Operate Temperature | -20 to 70°C |
