3 Inch Pneumatic Emergency Shut Off Valve for Fuel Tanker Truck High Pressure Resistance and Durability
| MOQ: | 1 |
| Price: | $100/sets 1-49 sets |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China, Hubei,China
Brand Name
Huate
Model Number
HY.XYFL01-4
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Type:
Standard
Product Name:
Fuel Tanker Truck Bottom Valve
Suit For:
Tanker Truck Or Semi Trailer
Medium:
Light Fuel
Material:
Aluminum Alloy
Work Pressure:
0-0.6Mpa
Inlet Size:
3 Inch
Operation Mode:
Pneumatic
MOQ:
1
Package:
Carton Package
Use:
Oil
Application:
Fuel Tanker Truck
Highlight:
3 inch pneumatic shut off valve
,fuel tanker truck emergency valve
,high pressure shut off valve
Product Description

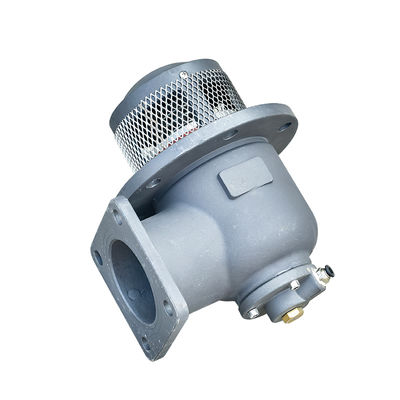

3 Inch Pneumatic Emergency Shut Off Valve for Fuel Tanker Truck
High Pressure Resistance and Durability
Our emergency valves provide reliable flow control at the bottom of tank truck compartments in emergency situations. Engineered with high-quality materials and robust design principles to maximize safety and performance.
Key Features
- Lightweight aluminum alloy construction for durability and corrosion resistance
- Die-cast body with high-quality components for long service life
- High lift poppet design for maximum flow capacity
- Double O-ring seals on camshaft for superior sealing and easy maintenance
- Removable bonnet assembly allows seal replacement without valve removal
- Standard screen filter on 3" models prevents seal damage
- Viton seals standard for compatibility with high-octane fuels and additives
Technical Specifications
| Name | 3" Aluminum Alloy Tanker Truck Pneumatic Emergency Shut Off Valve |
|---|---|
| Model | HY.XYFL01 |
| Diameter | DN80 |
| Material | Aluminum Alloy |
| Pressure | 0-0.6 Mpa |
| Control Mode | Pneumatic |
| Fuel Compatibility | Gasoline, diesel, and up to E20 and B100 biofuels |
| Operating Temperature | -20 to 70°C |
