Chemical 4" Stainless Steel 304 C4 316L Pneumatic Emergency Bottom Valve
| MOQ: | 1 |
| Price: | $280/pieces 1-9 pieces |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
CHUANCHU
Model Number
HT.QDQ413F-16P
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Valve
Product Name:
Stainless Steel Pneumatic Bottom Valve
Material:
Stainless Steel 304,C4,316L
Nominal Pressure:
0.6MPa
Medium:
Chemical Material
Seal Material:
PTFE
Package:
Carton
Customized Support:
ODM,OEM,OBM
Use:
Chemical
Application:
Tanker Truck
Highlight:
stainless steel 304 emergency valve
,pneumatic bottom valve for safety
,C4 316L chemical valve
Product Description

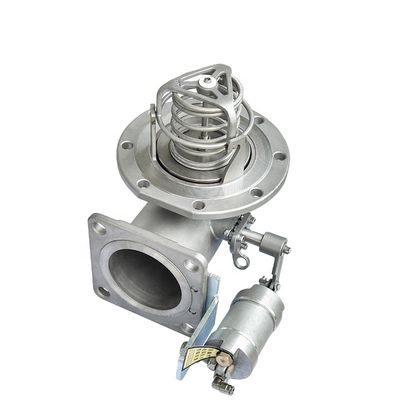

Chemical 4" Stainless Steel 304 C4 316L Pneumatic Emergency Bottom Valve
Ensures safety and efficiency in chemical transportation with automatic sealing during emergencies.
Product Description
New 4" Stainless Steel 304 C4 316L Pneumatic Emergency Bottom Valve (also known as bottom loading valve) is installed at the tank bottom to maintain sealing integrity during pipeline or valve failures.
Key Features
- Constructed from high-quality stainless steel (304, C4, or 316L) for superior strength, corrosion resistance, and durability
- Pneumatic operation with large flow capacity through optimized structural design
- Automatic sealing mechanism activates during strong impacts, preventing leaks through breakaway groove design
- Precision-cast single-piece construction for simplified maintenance and long service life
- Compliant with QC 932-2018 industry standards
Technical Specifications
| Product Name | Stainless Steel Emergency Bottom Valve |
|---|---|
| Main Material | Stainless steel 304, C4, 316L |
| Nominal Diameter | DN100 (4") |
| Nominal Pressure | 0.6MPa |
| Design Temperature | -20°C to +180°C |
| Weight | 13.5kg |
| Medium | Chemical materials |
| Seal Material | PTFE |
Product Images
Company Information
Certifications
Packaging & Shipping
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: Can I have my own logo on the product?
A: Yes, we can customize with your logo (additional cost applies).
Q: How long have you worked in this field?
A: Over 15 years of manufacturing experience.
Q: What's the delivery time?
A: Standard products ship within 7-10 days after payment confirmation.
Q: Can you produce according to our drawings or samples?
A: Yes, we accept custom manufacturing based on your specifications.
