Corrosion Resistant Stainless Steel 304 4 Inch Center High Universal Emergency Bottom Valve
| MOQ: | 1 |
| Price: | $280/pieces 1-9 pieces |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
CHUANCHU
Model Number
HT.QDQ413F-16P
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Valve
Product Name:
Center High Universal Emergency Bottom Valve
Material:
Stainless Steel 304,C4,316L
Nominal Pressure:
0.6MPa
Medium:
Chemical Material
Seal Material:
PTFE
Package:
Carton
Customized Support:
ODM,OEM,OBM
Use:
Chemical
Application:
Tanker Truck
Highlight:
stainless steel 304 emergency bottom valve
,4 inch universal bottom valve
,corrosion-resistant center high valve
Product Description

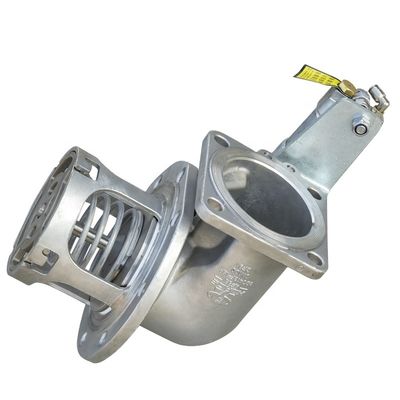

Corrosion-resistant Stainless Steel 304 4 Inch Center High Universal Emergency Bottom Valve with Certificate
The Stainless Steel 304 4 Inch Center High Universal Emergency Bottom Valve is a critical safety component designed for tank installations. Also known as a bottom loading valve, it provides emergency cut-off functionality when installed at the tank base.
The valve's main body resides inside the tank, ensuring continued sealing capability even if external pipelines or valves become damaged. This design significantly enhances transportation safety and reliability. Manufactured through precision casting, the valve features a simple yet durable structure for easy maintenance.
Key Features
- Constructed from high-quality stainless steel (304, 316L, or C4 options available) for exceptional strength, corrosion resistance, and durability
- Pneumatic operation with emergency shut-off capability for immediate response to critical situations
- Optimized structural design ensures maximum flow capacity
- Compatible with aluminum alloy pneumatic bottom loading valves for flexible installation
- Manufactured in compliance with QC 932-2018 standards
Technical Specifications
| Product Name | Center High Universal Emergency Bottom Valve |
|---|---|
| Main Material | Stainless Steel 304, C4, 316L |
| Nominal Diameter | DN100 (4 inch) |
| Nominal Pressure | 0.6MPa |
| Design Temperature | -20ºC to +180ºC |
| Weight | 12kg |
| Medium | Chemical materials |
| Seal Material | PTFE |
Product Images
Company Information
Certifications
Packaging & Shipping
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear the associated costs.
Q: How long have you worked in this field?
A: Over 15 years.
Q: What's the delivery time?
A: Standard products will be arranged to ship in 7-10 days after full payment is received.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
