Offer Carbon Steel Fuel Oil Tank Mechanical Pneumatic Emergency Bottom Valve For Asphalt / Crude
| MOQ: | 1 |
| Price: | $168/pieces 1-9 pieces |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
CHUANCHU
Model Number
HT.QDQ411F-16P
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Valve
Product Name:
Emergency Bottom Valve For Asphalt/Crude
Material:
Carbon Steel
Nominal Pressure:
0.6MPa
Medium:
Asphalt,Oil
Seal Material:
Fluoro Rubber
Package:
Carton
Customized Support:
ODM,OEM,OBM
Use:
Chemical
Application:
Tanker Truck
Highlight:
carbon steel fuel oil tank
,mechanical pneumatic emergency valve
,asphalt crude oil bottom valve
Product Description

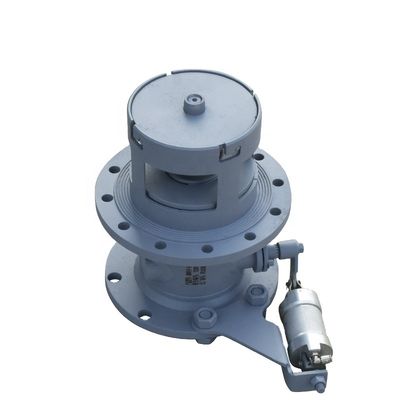

Pneumatic Emergency Bottom Valve for Asphalt/Crude
This emergency cut-off valve, also known as a bottom loading valve, is installed at the bottom of fuel tanks. The valve's main body is positioned inside the tank, ensuring the tank remains sealed even if the pipeline or valve is accidentally damaged. This design significantly improves transportation safety and reliability.
Key Features
- Automatic limit function enables efficient unloading with maximum flow rate of 4000L/min
- Independent air cylinder with pneumatic control, operable manually via soft axis controller
- Emergency cut-off groove automatically separates the tank from the bottom when impacted, preventing liquid leakage
- Constructed from durable carbon steel with simple, maintenance-friendly design
- Ideal for tankers transporting asphalt and crude oil
Technical Specifications
| Product Name | Pneumatic Emergency Bottom Valve for Asphalt/Crude |
|---|---|
| Main Material | Carbon steel |
| Nominal Diameter | DN150 |
| Nominal Pressure | 0.6MPa |
| Design Temperature | -20ºC to +180ºC |
| Weight | 25kg |
| Medium | Asphalt, Oil |
| Seal Material | PTFE |
Product Images
Company Information
Certifications
Packaging & Shipping
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are factory.
Q: Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
Q: How long have you worked in this field?
A: Over 15 years.
Q: What's the delivery time?
A: Standard products will be arranged to ship in 7-10 days after full payment received.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
