Chemical Material Stainless Steel Hydraulic Emergency Cut-off Valve with 0.6MPa Nominal Pressure
| MOQ: | 1 |
| Price: | $600/pieces >=1 pieces |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
CHUANCHU
Model Number
HT.QDQ413F-16P
Working Voltage:
/
Flow Rate:
/
Warranty:
12 Months
Certificate:
/
Type:
Valve
Product Name:
Hydraulic Emergency Cut-off Valve
Material:
Stainless Steel/F46
Nominal Pressure:
0.6MPa
Medium:
Chemical Material
Seal Material:
Viton,PTFE
Package:
Carton
Customized Support:
ODM,OEM,OBM
Opening Method:
Hydraulic
Use:
Chemical
Application:
Tanker Truck
Highlight:
stainless steel hydraulic cut-off valve
,emergency cut-off valve 0.6MPa
,hydraulic valve for special vehicles
Product Description

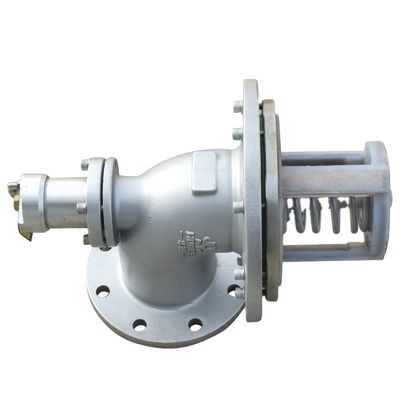

Stainless Steel Hydraulic Emergency Cut-off Valve
The Stainless Steel Hydraulic Emergency Cut-off Valve (also known as bottom loading valve) is installed at the bottom of tanks. The main valve body is installed inside the tank, ensuring tank sealing even if the pipeline or valve is accidentally broken or damaged.
Key Features
- Hydraulic transmission control for smooth, safe and reliable operation
- Automatic limit function with optimized structure design for large flow capacity
- Emergency cut-off groove automatically separates tank from bottom when impacted, preventing liquid leakage
- F46 stainless steel lining effectively prevents medium corrosion
- Upgraded hydraulic transmission for faster response and safer power transmission
- Self-lubricating hydraulic oil extends service life
- Complies with QC932-2019 standards
Technical Specifications
| Product Name | Hydraulic Emergency Cut-off Valve |
|---|---|
| Main Material | Stainless steel/F46 |
| Nominal Diameter | DN100 |
| Nominal Pressure | 0.6MPa |
| Design Temperature | -20ºC ~ +150ºC |
| Weight | 25kg |
| Compatible Media | Sulfuric acid, hydrochloric acid, nitric acid, sodium chloride, sodium hydroxide |
| Flange Size | 6" |
| Opening Method | Hydraulic |
| Seal Material | Viton, PTFE |
Product Images
Company Information
Certifications
Packaging & Shipping
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are factory.
Q: Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
Q: How long have you worked in this field?
A: Over 15 years.
Q: What's the delivery time?
A: Standard products will be arranged to ship in 7-10 days after full payment received.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
