3 Inch Aluminum Alloy Tube Ball Valve Essential for Opening and Closing Pipelines in Truck Tanker
Products
Contact Us
|
3 Inch Aluminum Alloy Tube Ball Valve Essential for Opening and Closing Pipelines in Truck Tanker
| MOQ: | 1 |
| Price: | $42/units 2-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
CHUANCHU
Model Number
Q41F-16P
Working Voltage:
/
Flow Rate:
/
Warranty:
1 YEAR
Type:
Pipeline Valve Parts
Product Name:
Direct Ball Valve
Material:
Aluminum Alloy
Medium:
Non-corrosion Material
Size:
DN80
Usage:
Open And Close Of The Pipeline
Norminal Pressure:
0.6Mpa
Connection Form:
Flange
Packing:
Carton
Power:
Mannual
Customized Support:
OEM,ODM
Use:
Open And Close Of The Pipeline
Application:
Pipeline
Highlight:
3 inch aluminum alloy ball valve
,truck tanker pipeline valve
,ball valve for special vehicle parts
Product Description

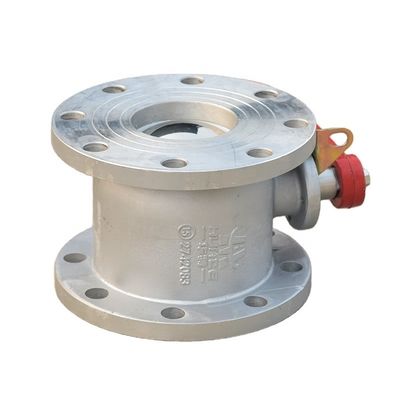

3 Inch Aluminum Alloy Tube Ball Valve for Truck Tanker Pipelines
Quick Release Ball Valve for Tanker Trucks
This quick release ball valve with flange is installed downstream of emergency cut-off valves, designed for fast connection and medium loading/unloading operations. Ideal for liquefied petroleum gas tanks and liquid ammonia tanks, featuring floating ball type for rapid operation.
Product Variants
Available in both square and circular configurations for tanker applications, providing safe and reliable operation for non-corrosive liquid pipeline control (fuel stations, gas stations, etc.). Features adjustable stem weight and rotary flange seal seat plate to eliminate leakage.
Technical Specifications
- Material: Aluminum alloy construction
- Model Sizes: HT.QF02-50, HT.QF02-65, HT.QF02-80, HT.QF02-100
- Standards: CCC certified
- Certifications: ISO9001, TS, MA, AL, CANS, IAF
- Working Pressure: 0.6MPa
- Temperature Range: -20°C to +70°C
- Sealing Material: PTFE for durable performance
| Product Type | Straight ball valve for square tank truck, quick release ball valve, pipe valve |
|---|---|
| Available Sizes | 2", 2.5", 3", 4" |
| Connection Type | Weld connection |
| Applications | Non-corrosive liquid pipeline control (fuel, gas stations, etc.) |
