Chemical Tank Truck Subsea Valve with Stainless Steel F46 Material and Viton/PTFE Seal
| MOQ: | 1 |
| Price: | $280/pieces 1-9 pieces |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
CHUANCHU
Model Number
QDQ413F_16P
Pump:
/
Material:
Stainless Steel
Power:
/
Accuracy:
/
Nozzle:
/
Ambient Temperature:
/
Working Voltage:
/
Flow Rate:
/
Warranty:
1year
Certificate:
/
Type:
Valve
Nominal Diameter:
DN100
Positive Pressure:
0.6Mpa
Flange Size:
4"/6"
Weight:
25kg
Main Material:
Stainless Steel F46
Design Tempreture:
-20~+150
Seal Material:
Viton/PTFE
Applicable Media:
Sulfuric Acid,nitric Acid,sodium Chloride,sodium Hydroxide
Opening Method:
Hydraulic
Highlight:
stainless steel chemical tank valve
,subsea valve with PTFE seal
,F46 material truck valve
Product Description

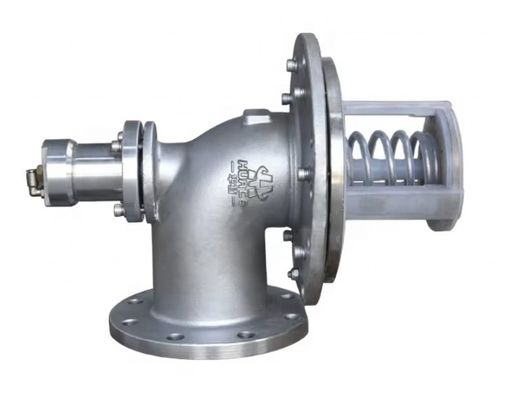

Chemical Tank Truck Subsea Valve with Stainless Steel F46 Material and Viton/PTFE Seal
Product Description
Hot Selling Chemical Tank Truck Subsea Valve Stainless Steel Hydraulic Subsea Valve
| Specification | Value |
|---|---|
| Nominal Diameter | DN100 |
| Positive Pressure | 0.6Mpa |
| Flange Size | 4"/6" |
| Weight | 25kg |
| Main Material | Stainless Steel F46 |
| Design Temperature | -20~+150 |
| Seal Material | Viton/PTFE |
| Applicable Media | Sulfuric acid, nitric acid, sodium chloride, sodium hydroxide |
| Opening Method | Hydraulic |
Emergency Cut-off Valve also named Bottom Loading Valve. It's installed at the bottom of tank. The main of the valve was installed inside of the tank. When the pipeline or valve is accidentally broken or damaged, the tank can still be sealed. The product is lined with F46 stainless steel to effectively prevent the medium from corroding the valve body.
This product has upgraded the hydraulic transmission method, which is more stable and powerful than pneumatic. It responds more quickly and the power transmission is safer than before. Its hydraulic oil has self-lubricating effect, and its service life is longer. This product meets the relevant requirements of QC932-2019.
Key Features
- This product adopts hydraulic transmission control, running smoothly, safe and reliable.
- The automatic limit function is turned on, with reasonable structure design to ensure large flow through.
- When the bottom of the tanker is hit, the emergency cut-off groove automatically breaks to separate the tank from the bottom and become an independent closed tank to prevent liquid leakage.
Packaging & Shipping
Our Services
We have professional designers and accurate CNC lathe machines with reliable testing equipment, so OEM or ODM service can be offered. The whole process from drawing design to finished product testing can be controlled by ourselves, making it safe for you to cooperate with us.
Company Information
Hubei Huate Special Equipment Co., Ltd. was founded in 2009 and covers an area of about 30,000 square meters. The company promotes total quality management: GB/T19001-2016. It has successively obtained safety management system certification and environmental protection certification in 2019. It has obtained high-tech enterprise certification, emergency shut-off valve industrial production license, dangerous goods (vehicle tank/storage tank) industrial production license in 2020. It has obtained the type approval certificate for measuring instruments and the production qualification for special purpose vehicles in 2021.
In line with the professional development trend of the automobile industry, in the fields of Internet of Things, intelligence and emergency rescue, Huate makes full use of the company's patented technology and the advantages of self-production of parts and components, and focuses on the "Internet of Things intelligent special-purpose vehicle production project". In 2022, the focus will be on the development of "Internet of Things chemical liquid transport vehicle", "Internet of Things filling and oil transport vehicle" and 'mobile inspection vehicle". In the later period, intelligent professional vehicles such as "hazardous chemical emergency rescue vehicle" and "dangerous goods emergency transfer vehicle" will continue to be added.
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30 days if the goods are not in stock, depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample but not for free charge but can return when the single order reach to 2000pcs.
Q: What is your terms of payment?
A: Payment <=3000USD, 100% in advance. Payment>=10,000USD, 30% T/T in advance, balance before shipment.
Q: How long have you worked in this field?
A: Over 15 years.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
If you have any other questions, please feel free to contact us.
