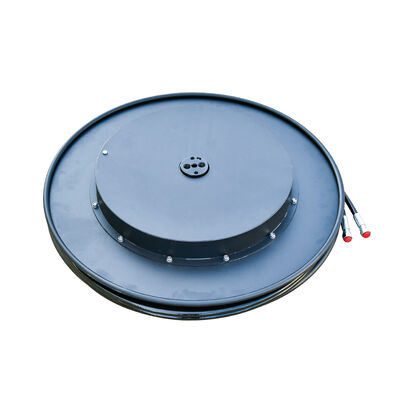

HUATE High Pressure Hydraulic Hose Reel 40MPa
| MOQ: | 1 |
| Price: | 20000 |
| Payment Method: | L/C |
High Pressure Hydraulic Hose Reel
,40MPa Hydraulic Hose Reel
,Hydraulic Hose Reel Special Vehicle
In mobile operation scenarios including port lifting, aerial work, sanitation cleaning, and mining engineering, operators have long suffered from messy tangled hydraulic hoses, labor-intensive winding and unwinding, and pipeline wear and leakage issues.
The HUATE hydraulic hose reel is a professional storage device for high-pressure fluid pipelines, realizing automatic retraction and release of hydraulic hoses while protecting pipelines and improving operation efficiency. We offer two mainstream versions: spring rewind (no external power supply) and electric controlled rewind, to perfectly match different on-site operation demands of global machinery clients.
Designed for outdoor mobile operations with no power access. No external power supply required, perfectly fitted for engineering vehicles, mining machinery, and field mobile equipment. It operates stably without power cut restrictions, specially for storage and arrangement of hydraulic oil, high-pressure clean water, and other high-pressure fluid delivery hoses.
| Rewind Drive | Spring driven, automatic hose retraction for easy operation |
|---|---|
| Working Pressure | Rated 40MPa, burst pressure up to 120MPa, stable under high-pressure working conditions |
| Operating Temperature | -40℃ ~ 80℃, reliable performance under extreme cold or hot outdoor environments |
| Oil Circuit Structure | Dual-channel oil circuit, standardized connector threads; Oil inlet: G3/8 internal thread, Oil outlet: M14×1.5H internal thread |
| Matching Hose | Standard equipped with 13.5m high-pressure hose, reel diameter 540mm |
- Simple structure without complex motor and circuit components, fewer failure points, shock and vibration resistant.
- Low daily maintenance cost: Only hydraulic oil and sealing parts need regular inspection, ideal for field jobs with no power supply.
Suitable for continuous heavy-duty operations with large flow and high pressure. Equipped with precise electric speed control for hose retraction and release, perfect for fixed or vehicle-mounted equipment requiring standardized automatic pipeline operation.
| Power Supply | 220V electric drive, matched with motor and electromagnetic valve control system |
|---|---|
| Rewind Drive | Spring automatic retraction assisted by motor speed regulation |
| Operating Temperature | -40℃ ~ 80℃, adaptable to all temperature environments |
| Oil Circuit Structure | Dual-channel oil passages, unified connector specifications same as no-power version for great universality |
| Matching Hose | Standard 13.5m high-pressure hose, reel size 540mm |
- Intelligent & Easy Operation: Control motor start/stop via switches and electromagnetic valves, precisely adjust winding and unwinding speed to fit high-frequency heavy workloads.
- Lower Hose Wear: Built-in reduction gear set with intelligent drive delivers uniform retraction speed, greatly reducing abrasion, extrusion, and damage of hoses to extend service life.
- Stable Traction Force: Supported by hydraulic system to provide constant pulling force, running smoothly without jamming even for large-flow, high-pressure heavy pipeline operations.
The reel body adopts electrostatic spraying powder coating technology, with strong resistance to rust, dust, sand, and corrosion. It maintains intact coating without rusting under long-term harsh working conditions including ports, mines, and dusty sanitation sites.
Dual-channel oil passage design with industry-standard inlet and outlet thread specifications. Compatible with most domestic and imported hydraulic equipment without extra adapter fittings, easy installation and replacement.
Stable operation available from -40℃ severe cold winter to 80℃ high-temperature summer. Works reliably for northern mining areas and sun-exposed southern port sites.
Both versions adopt spring-driven automatic hose take-up structure. The reel will automatically retract the hose once operators loosen the tube after pulling it out, eliminating manual winding and greatly boosting work efficiency.
HUATE hydraulic hose reels feature strong versatility, widely supporting various engineering, port, sanitation, and special vehicle equipment:
- Port Lifting Equipment: Gantry cranes, container spreaders, container loading and unloading machinery for hydraulic power hose storage.
- Sanitation Special Vehicles: Garbage trucks, pipeline cleaning vehicles, high-pressure cleaning trucks for liquid conveying pipelines.
- Aerial Work Equipment: Aerial work platforms, lifting equipment for hydraulic pipeline arrangement.
- Mobile Mining Machinery: Open-pit mining mobile equipment, mobile engineering units without fixed power supply.
- Equipment works outdoors long-term without external power supply
- You need low daily maintenance cost
- Mainly used for mining and mobile engineering vehicles
- Equipment runs fixed-site high-frequency continuous operations
- Automatic and precise hose winding speed control is required
- Workshops and dock fixed facilities are your main usage scenarios
High-pressure pipeline management is critical for stable equipment operation. HUATE hydraulic hose reels can orderly store hydraulic pipelines, reduce hose abrasion and extra energy consumption, and simplify on-site pipeline layout. Whether you need no-external-power field operation or automatic high-frequency pipeline storage, we can supply matched hydraulic hose reel solutions to meet your global machinery supporting demands.
Contact our sales team to get professional one-stop support for your hydraulic hose reel requirements.
