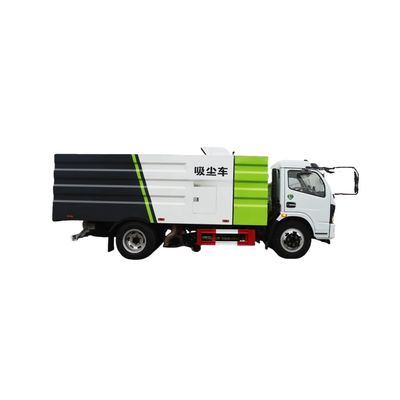

Pure Electric Outdoor Sanitation Cleaning Truck 8CBM Vacuum Road Sweeper Truck
| MOQ: | 1 |
| Price: | $22,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Pure Electric Sanitation Cleaning Truck
,Outdoor Sanitation Cleaning Truck
,8CBM Vacuum Road Sweeper Truck
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Vacuum Sweeper Truck | Product Model | HTT 5120TXC6GX |
| Gross Mass (Kg) | 11995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 5300,5365,4765,4700,4115,4050,3315,3250 | ||
| Outline Dimension (mm) | 7160×2200,2260×2750,2760 | ||
| Curb Weight (Kg) | 6500,7100,7750,8550 | ||
| Axle Weight | 4350/7645 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 21/12 | Front Suspension / Rear Suspension (mm) | 1180/2180,1180/2280,1130/2230,1130/2330,1317/2043,1317/2143,1310/2050,1310/2150 |
| Wheel Base | 3800,3950,4050,4100,4400,3600,4700 | ||
| Top Vehicle Speed (Km/h) | 103 | ||
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1125SJ8CDC | Chassis Brand | Truck Chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR | ||
| Number of Steel Plate Spring Sheets | 8/10+7,12/12+9 | ||
| Front Gauge (mm) | 1745,1802,1820,1842,1765,1890 | Rear Track (mm) | 1630,1650,1800,1720 |
| Fuel Types | Diesel Oil | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Box Effective Volume | 8m³ |
| Effluent Standard | Euro 3 4 5 6 | Ground Clearance | 350mm |
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| YCY30165-60 | 2970 | 121 | 165 |
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to resolve the issue for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. It is a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province (the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China), Huate's main products include: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series, sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products.
With professional technical team, strong management team, and efficient sales team, Huate products lead domestic advanced levels and serve international markets with diversified product patterns. The company has passed GB/T19001-2016, GB/T24001-2016, and GB/T45001-2020 certifications, with international 3C compulsory certificate and tank container CCS certificate, holding multiple invention patents and participating in national standards drafting.
Adhering to the business philosophy of "Create industry quality products. Strive to be an industry pioneer", Huate provides intelligent solutions and superior cooperation platforms. Currently exporting to over 30 countries including Africa, Middle East, Southeast Asia, America, and Europe, receiving favorable feedback from domestic and foreign users.
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price.
We will show photos and video of the finished truck before balance payment.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF.
Generally 10-20 days after receiving advance payment. Specific time depends on order items and quantity.
(Right hand drive chassis requires longer delivery time than left hand drive. Detailed clauses subject to contract.)
Experienced workers and engineers control quality throughout production, following state special trucks technical specifications and safety standards. 100% testing before delivery.
Warranty: 12 months with free spare parts.
Our company passed BV factory audit. You can arrange third party inspection.
Over 15 years experience in truck manufacturing and trading.
Our factory is in Suizhou City, Hubei Province, China.
Arrive in Wuhan (capital of Hubei) by train or plane, and our driver will pick you up at Wuhan Railway Station or Tianhe Airport.
Invitation letter available upon request with your private and company information.
