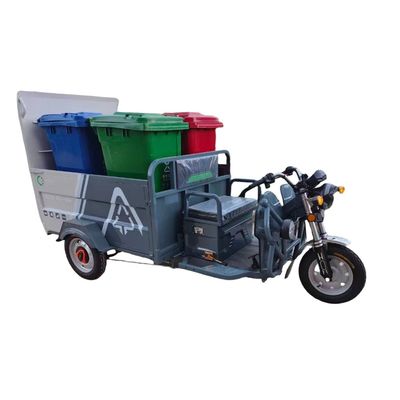

Four Barrels Pure Sanitation Electric Tricycle Garbage Electric Sanitation Truck For Cleaning
| MOQ: | 1 |
| Price: | $3,200/units >=1 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
Four Barrels Sanitation Electric Tricycle
,Cleaning Sanitation Electric Tricycle
,Garbage Electric Sanitation Truck
Product Description
Energy Type Pure Electric Four Barrels Electric Sanitation Truck for Custom's Requirement and Cleaning of Flat Garbage
FAQ
Products Description
Product Paramenters
|
Announcement of parameters of four barrel cleaner
|
|
|
|
|||
|
Items
|
|
Parameters
|
|
|||
|
Technical parameters
|
Product model number
|
HTT1200DZH-11
|
|
|||
|
|
Full vehicle dimensions (L * W * H)mm
|
3020 * 1500 * 1630
|
|
|||
|
|
Carriage dimensions (L
* W * H)mm |
1500 * 1200 * 600
|
|
|||
|
|
Load weight kg
|
275
|
|
|||
|
|
Preparation mass kg
|
245
|
|
|||
|
|
Wheel base mm
|
1320
|
|
|||
|
|
Wheelbase mm
|
2050
|
|
|||
|
|
Maximum climb grade
|
15 . or higher
|
|
|||
|
|
Minimum ground
clearance mm |
≥100mm
|
|
|||
|
|
Number of buckets
|
Four 240L national standard garbage cans
|
|
|||
|
Electric and gas system
|
Speed km/h
|
53
|
|
|||
|
|
Range km
|
50km
|
|
|||
|
|
Single battery
capacity, number |
48V/60V maintenance-free battery
|
|
|||
|
|
Standard voltage V
|
48V/60V
|
|
|||
|
|
Walking motor power W
|
1000W
|
|
|||
|
|
Electronic control system
|
18 tube dual bank intelligent dual mode controller
|
|
|||
|
|
Tire Specifications
|
3.75-12 Front wheels 3.75-12 rear wheels
|
|
|||
|
|
Front shock absorption system
|
Φ43 telescopic tube type front shock absorbers
|
|
|||
|
|
Rear shock absorber
system |
Use plus heavy leaf spring 5 pieces
|
|
|||
|
|
Control walking mode
|
Turning handlebars
|
|
|||
|
|
Driving style
|
Directional handle style
|
|
|||
|
|
Brake mode
|
Foot mechanical connecting rod drum rear wheel brake + manual mec parking brake
|
|
|||
|
|
Light Fixtures
|
LED lights, left and right turn signals, brake lights, running meters, electric horns, work warning lights, etc
|
|
|||
|
|
Wiring harness assembly wiring method
|
High and low double line: high temperature line high pressure 4 low pressure 1 square
|
|
|||
|
Chassis
|
Transaxle
|
Adopt load chainless with high and low speed truck-type rear axl axle
|
|
|||
|
|
Frame material
|
The main beam adopts 50*50*2.5mm rectangular tube, and does c electrophoresis anticorrosion and rust prevention treatment.
|
|
|||
|
|
Carriage structure
|
Removable carriage for easy transportation
|
|
|||
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a “ national high-tech “ enterprise and “ SRDI” enterprise. Our company was founded in February 2009 , located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China. Huate main products: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series ,sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products. We have professional technical team, strong and experienced management team, efficient domestic and overseas sales team . Huate products not only lead the domestic advanced level, but also towards the international market, forming a diversified and serialized product pattern. Huate is driven by innovation , market-oriented and brand-led . It constantly improve product quality and management level, our company has fully passed the GB/T19001-2016 idt ISO9001:2015 quality system certificate and GB/T24001-2016 idt ISO14001:2015 environmental system certificate and GB/T45001-2020 idt ISO45001:2018 occupation health safety system certificate .Our products has passed international 3C compulsory certificate and tank container CCS certificate , with a number of invention patents . We have participated in the drafting of various national standards and industry standards. The company adheres to the business philosophy of "Create industry quality products. Strive to be an industry pioneer" , based on the design and manufacturing of intelligent and digital core components, we provide clients with intelligent solutions. With its differentiation and cost-effective advantages, we provide users with superior and mutually beneficial and win-win cooperation platform. Currently our products have been exported to Africa Middle East Southeast Asia America Europe more than 30 countries , well received by domestic and foreign users with favorable comments .
Manufacturing Technique
Certifications
Customer Photos
Project Show
Product packaging
Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.
Q5. How to trust us ?
Our company pass BV factory audit,And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
