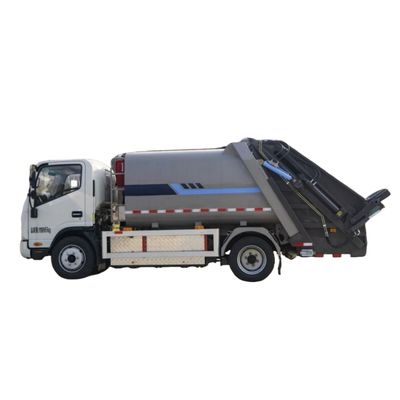

JAC 8m3 Compactor Garbage Truck Rubbish Bin Collection Dump Truck Pure Electric Energy
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
electric compactor garbage truck
,8m3 rubbish collection truck
,pure electric dump truck
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure Electric Compressed Garbage Truck | Product Model | HTT5120ZYSBEV |
| Total Mass (Kg) | 11995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 4150,3900,3670 | Outline Dimension (mm) | 6975,6865,6690,6645×2350,2400×2750 |
| Curb Weight (Kg) | 7650,7900,8130 | Axle Weight | 3795/8200 |
| Number of People in Cab | 3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 24/11 | Front/Rear Suspension (mm) | 1110/2170 |
| Wheel Base | 3365 | Top Vehicle Speed (Km/h) | 90 |
| Upper Volume | 8 m³ | ||
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | HFC1123EV1Z | Chassis Name | Pure Electric Truck Chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Size | 245/70R19.5 16PR | Number of Steel Plate Spring Sheets | 9/9+7 |
| Front Gauge (mm) | 1710 | Rear Track (mm) | 1785 |
| Fuel Type | Pure Electric | ABS | Yes |
| Chassis Wheelbase | 5300mm | Battery Brand | Ningde Era |
| Battery Capacity | 162.28KWH | Charging Time | About 3 hours |
| Battery Category | Lithium Iron Phosphate | Full Range | 463 KM |
| Battery Pack Rated Voltage | 618.24V | Recommended Charging Pile Power | 120KW |
| Maximum Power of Chassis Motor | 160KW | Rated Power of Mounted Motor | 80 KW |
| Upload Consumes Power Per Hour | 40-50KWH | ||
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ370XS-LKM1108 | 160 | 218 |
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. It is a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province (the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China), Huate's main products include: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series, sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products.
With professional technical teams, strong management experience, and efficient domestic and overseas sales teams, Huate products lead domestic advanced levels while serving international markets with diversified and serialized product patterns.
Huate is innovation-driven, market-oriented and brand-led, constantly improving product quality and management levels. The company has fully passed GB/T19001-2016 (ISO9001:2015) quality system, GB/T24001-2016 (ISO14001:2015) environmental system, and GB/T45001-2020 (ISO45001:2018) occupational health safety system certifications. Our products have passed international 3C compulsory certification and tank container CCS certification, with multiple invention patents and participation in drafting various national and industry standards.
Adhering to the business philosophy of "Create industry quality products. Strive to be an industry pioneer", Huate provides intelligent solutions based on the design and manufacturing of intelligent and digital core components. With differentiation and cost-effective advantages, we offer superior, mutually beneficial cooperation platforms. Currently, our products have been exported to Africa, Middle East, Southeast Asia, America, Europe and more than 30 other countries, receiving favorable reviews from domestic and foreign users.
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF.
Generally 10-20 days after receiving advance payment. Specific time depends on order items and quantity.
(Right-hand drive chassis require longer delivery than left-hand drive. Detailed clauses subject to contract.)
Experienced workers and engineers control quality throughout production, following STATE special trucks technical and safety specifications. 100% testing before delivery.
Warranty: 12 months with free spare parts.
Our company passed BV factory audit. You can arrange third-party inspection.
15+ years experience in truck manufacturing and trading.
Located in Suizhou City, Hubei Province, China.
Arrive in Wuhan (capital of Hubei) by train/plane - we provide pickup from Wuhan Railway Station or Tianhe Airport.
Invitation letters available upon request with your personal and company information.
