Customization Option Pure Electric Vacuum Truck Mounted Road Sweeper/Washing and Sweeping Vehicle
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric vacuum road sweeper truck
,mounted washing sweeping vehicle
,sanitation cleaning truck with warranty
Product Description

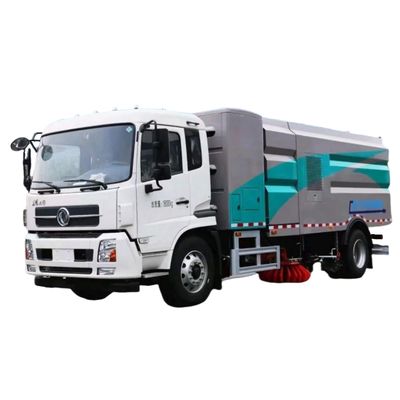

Customization Option Pure Electric Vacuum Truck Mounted Road Sweeper/Washing and Sweeping Vehicle
Product Description
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric Washing and sweeping vehicle | Product Model | HTT5182TXSBEV |
| Total Mass (Kg) | 18000 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 5120,5055,4070,4005 | Outline Dimension (mm) | 9000×2550×3240 |
| Curb Weight (Kg) | 12750,13800 | Axle Weight | 7000/11000 |
| Number of People in Cab | 2,3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/9 | Front/Rear Suspension (mm) | 1430/22700 |
| Wheel Base | 5600,5300 | Top Vehicle Speed (Km/h) | 100,89,90 |
| Upper Volume | 8m³ water / 7m³ dust | ||
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1180GEVJ1 | Chassis Brand | Dongfeng brand |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Size | 295/80R22.5 18PR | Number of Steel Plate Spring Sheets | 12/12+8,10/9+7 |
| Front Gauge (mm) | 1880,1920 | Rear Track (mm) | 1860 |
| Fuel Type | Pure electric | ABS | Yes |
| Chassis Wheelbase | 5300mm | Battery Brand | Ningde era |
| Battery Capacity | 314KWH | Charging Time | About 3 hours |
| Battery Category | Lithium-iron-phosphate storage battery | Full Range | 369KM |
| Battery Pack Rated Voltage | 579.6V | Charging Pile Power Recommendation | 120KW |
| Maximum Power of Chassis Motor | 160KW | Rated Power of Mounted Motor | 80 KW |
| Upload Consumes Power Per Hour | 60KWH | Engine Type | TZ370XS-LKM1101 |
| Power (Kw) | 160 | Horsepower | 218 |
After-sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange our personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. It is a "national high-tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province - the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China.
Main Products
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
We have professional technical team, strong and experienced management team, and efficient domestic and overseas sales team. Our products not only lead the domestic advanced level but also serve international markets, forming a diversified and serialized product pattern.
Certifications
Fully passed GB/T19001-2016 idt ISO9001:2015 quality system, GB/T24001-2016 idt ISO14001:2015 environmental system, and GB/T45001-2020 idt ISO45001:2018 occupational health safety system certificates. Our products have passed international 3C compulsory certificate and tank container CCS certificate, with multiple invention patents.
Manufacturing Technique
Customer Photos
Project Show
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
L/C: L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of Delivery
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF
We mainly do FOB, CIF, DAF
Q3. Delivery Time
Generally 10-20 days after receiving advance payment. Specific delivery time depends on order items and quantity.
(Right hand drive chassis requires longer delivery time than left hand drive. Detailed clauses subject to contract.)
(Right hand drive chassis requires longer delivery time than left hand drive. Detailed clauses subject to contract.)
Q4. Quality and Warranty
Experienced workers and engineers control quality throughout production. We strictly follow STATE special trucks technical specifications and safety production standards, with 100% testing before delivery.
Warranty: 12 months with free spare parts.
Warranty: 12 months with free spare parts.
Q5. How to Trust Us?
Our company passed BV factory audit. You can arrange third party inspection.
Over 15 years experience in truck manufacturing and trading.
Over 15 years experience in truck manufacturing and trading.
Q6. Visit Our Factory
Located in Suizhou city, Hubei province, China.
Transportation: Take train/plane to Wuhan city (capital of Hubei province), our driver will pick you up at Wuhan railway station or Tianhe airport.
Invitation letter available upon request with your private and company information.
Transportation: Take train/plane to Wuhan city (capital of Hubei province), our driver will pick you up at Wuhan railway station or Tianhe airport.
Invitation letter available upon request with your private and company information.
