15m3 Electric Road Sweeper Truck with High Pressure Vacuum and Pure Electric Energy
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
15m3 electric road sweeper truck
,high pressure vacuum sweeper truck
,pure electric sanitation cleaning truck
Product Description

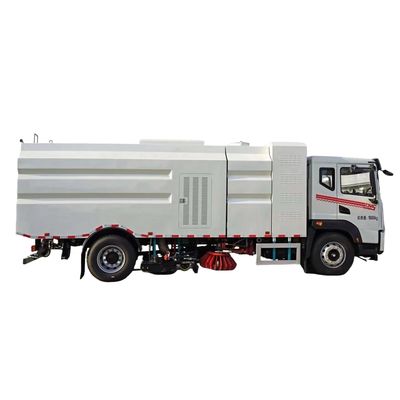

15m³ Electric Road Sweeper Truck with High Pressure Vacuum and Pure Electric Energy
Product Description
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric Washing and sweeping vehicle | Product Model | HTT5185TXSBEV |
| Total Mass (Kg) | 18000 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 4305,4370,5005,5070 | Outline Dimension (mm) | 9500,9200×2550×3320 |
| Curb Weight (Kg) | 13500,12800 | Axle Weight | 6500/11500 |
| Number of People in Cab | 2,3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 20/10 | Front/Rear Suspension (mm) | 1400/2500 |
| Wheel Base | 5600,5300 | Top Vehicle Speed (Km/h) | 90,89 |
| Upper Volume | 8 water / 7 dust | ||
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | CA1180P62L3BEV | Chassis Brand | Liberation card |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Size | 295/80R22.5,10.00R20 | ||
| Number of Steel Plate Spring Sheets | 12/12+8,10/9+7 | ||
| Front Gauge (mm) | 1946 | Rear Track (mm) | 1878 |
| Fuel Type | Pure electric | ABS | Yes |
| Chassis Wheelbase | 5300mm | Battery Brand | Ningde era |
| Battery Capacity | 281.92KWH | Charging Time | About 2.5 hours |
| Battery Category | Lithium iron phosphate | Full Range | 365 KM |
| Battery Pack Rated Voltage | 618.24V | Charging Pile Power Recommendation | 120KW |
| Maximum Power of Chassis Motor | 160KW | Rated Power of Mounted Motor | 80 KW |
| Upload Consumes Power Per Hour | 40-50KWH | ||
After-Sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating independent R&D, manufacturing, sales, and import & export trading of special trucks and truck accessories. As a national high-tech enterprise and SRDI enterprise, we were founded in February 2009 in Suizhou, Hubei province - the hometown of Yan Emperor and ancient music of chimes, known as the capital of special trucks in China.
Our main products include: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series, sanitation vehicle series, special vehicle parts series, and used truck trading. With professional technical teams, experienced management, and efficient sales teams, our products lead domestic advanced levels while expanding internationally.
We maintain GB/T19001-2016 (ISO9001:2015) quality system, GB/T24001-2016 (ISO14001:2015) environmental system, and GB/T45001-2020 (ISO45001:2018) occupational health safety system certifications. Our products hold international 3C compulsory certificates and tank container CCS certificates, with multiple invention patents and participation in national and industry standard drafting.
Adhering to "Create industry quality products. Strive to be an industry pioneer", we focus on intelligent, digital core components and provide cost-effective solutions. Our products are exported to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe, receiving favorable feedback.
Manufacturing Technique
Certifications
Customer Photos
Project Showcase
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We provide photos and video of finished truck before balance payment.
L/C: L/C price is higher than T/T price
We provide photos and video of finished truck before balance payment.
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
Mainly FOB, CIF, DAF.
Mainly FOB, CIF, DAF.
Q3. Delivery Time
10-20 days after receiving advance payment (varies by order items/quantity).
Right-hand drive chassis requires longer delivery than left-hand drive.
Detailed clauses subject to contract.
Right-hand drive chassis requires longer delivery than left-hand drive.
Detailed clauses subject to contract.
Q4. Quality and Warranty
Experienced workers and engineers ensure quality control following state special trucks technical and safety specifications. 100% testing before delivery.
Warranty: 12 months with free spare parts.
Warranty: 12 months with free spare parts.
Q5. How to Trust Us?
BV factory audit passed.
Third-party factory inspection available.
15+ years experience in truck manufacturing and trading.
Third-party factory inspection available.
15+ years experience in truck manufacturing and trading.
Q6. Visit Our Factory
Located in Suizhou City, Hubei Province, China.
Access via train/plane to Wuhan (capital of Hubei), with pickup service from Wuhan railway station or Tianhe airport.
Invitation letter available upon request with personal/company information.
Access via train/plane to Wuhan (capital of Hubei), with pickup service from Wuhan railway station or Tianhe airport.
Invitation letter available upon request with personal/company information.
