Pure Electric Self-Handling Compressed Garbage Truck for Environmentally Friendly Waste Management
| MOQ: | 1 |
| Price: | $15,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric self-handling garbage truck
,compressed waste management truck
,environmentally friendly sanitation truck
Product Description

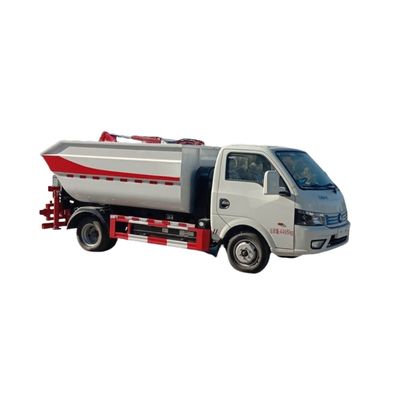

Pure Electric Self-Handling Compressed Garbage Truck
An environmentally friendly waste management solution featuring pure electric operation and self-handling compression technology.
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric self-handling type garbage truck | Product Model | HTT 5042ZZZBEV |
| Gross Mass (Kg) | 4495 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1185 | Outline Dimension (mm) | 5525,5325×1780×2175 |
| Curb Weight (Kg) | 3180 | Axle Weight | 1495/3000 |
| Number of Cab Members | 2,3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 21/16,21/14 | Front/Rear Suspension (mm) | 1180/1345,1180/1145 |
| Wheel Base | 2800,3000,3200 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1040BTZEVJ | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 6.00R15LT 10PR,185R15LT 8PR | Number of Steel Spring Sheets | 3/5 |
| Front Gauge (mm) | 1390 | Rear Track (mm) | 1240,1324 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Maximum Power of Chassis Motor | 100kw | Rated Power of Mounted Motor | 7.5KW |
| Battery Pack Rated Voltage | 322V | Loading Consumes Power Per Hour | 6KWH |
| Battery Capacity | 55KWH | Charging Pile Power Recommendation | 120KW |
| Chassis Full Load Range | 220 KM | Charging Time (Recommended Power) | About 0.6 hours |
Engine Specifications
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ180XSA05 | - | 100 | 135 |
After-sales service: If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and accessories. Established in 2009 and located in Suizhou, Hubei Province (China's special truck capital), we produce a comprehensive range of vehicles including:
- Dangerous goods tank trucks and tank containers
- Chemical storage tanks and vans
- Refrigerated trucks and testing vehicles
- Emergency rescue and engineering vehicles
- Sanitation vehicles and special vehicle parts
Our company holds ISO 9001, ISO 14001, and ISO 45001 certifications, along with international 3C and CCS certificates. With numerous invention patents and participation in national standard drafting, we export to over 30 countries worldwide.
Manufacturing Process
Certifications
Customer References
Project Showcase
Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% balance before delivery. L/C available (higher price than T/T). We provide photos and video of finished truck before balance payment.
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP available. We mainly handle FOB, CIF, and DAF.
Q3. Delivery Time
Typically 10-20 days after receiving advance payment. Right-hand drive vehicles require longer lead time than left-hand drive. Exact terms specified in contract.
Q4. Quality and Warranty
All vehicles undergo strict quality control and 100% testing before delivery. 12-month warranty with free spare parts during warranty period.
Q5. How to Verify Our Reliability
Our factory has passed BV audit. You may arrange third-party inspection. With 15+ years in special truck manufacturing, we have extensive industry experience.
Q6. Visiting Our Factory
Located in Suizhou City, Hubei Province. We provide pickup service from Wuhan railway station or Tianhe airport. Invitation letters available upon request with your company details.
