Hot Pure Electric Sale Compression Garbage Transfer Truck for Urban Waste Disposal
| MOQ: | 1 |
| Price: | $15,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric compression garbage truck
,urban waste disposal truck
,sanitation cleaning truck with warranty
Product Description

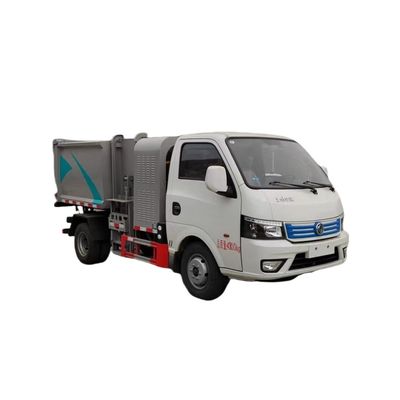

Hot Pure Electric Compression Garbage Transfer Truck for Urban Waste Disposal
Product Overview
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure Electric Restaurant-Kitchen Garbage Truck | Product Model | HTT 5100TCABEV |
| Gross Mass (Kg) | 4300 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1320 | Outline Dimension (mm) | 6420×2270×2845 |
| Curb Weight (Kg) | 2850 | Axle Weight | 1400/2900 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 21/19 | Front Suspension / Rear Suspension (mm) | 1275/1785 |
| Wheel Base | 3000 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1041TTZEVJ | Chassis Brand | Pure Electric Truck Chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 245/70R19.5 16PR | ||
| Number of Steel Plate Spring Sheets | 8/9+7 | ||
| Front Gauge (mm) | 1780 | Rear Track (mm) | 1642 |
| Fuel Types | Pure Electric | ABS | Have |
| Chassis Wheelbase | 3000 | Battery Brand | Ningde Era |
| Maximum Power of the Chassis Motor | 140kw | Rated Power of the Mounted Motor | 7.5KW |
| Battery Pack Rated Voltage | 386V | Charging Pile Power is Recommended | 120KW |
| Battery Capacity | 66.8KWH | Charging Time (under the recommended power) | About 0.6 hours |
| Upper Volume | 3.5 Square | Chassis Full Load of Range | 255 KM |
| Engine Type | TZ220XS504 | Power (Kw) / Horsepower | 140 / 190 |
After-Sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. We are a national high-tech enterprise and SRDI enterprise.
Founded in February 2009 and located in Suizhou, Hubei Province (the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China), Huate specializes in:
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
With professional technical teams, experienced management, and efficient sales teams, our products lead domestic standards while serving international markets. We maintain:
- ISO 9001:2015 Quality Management System Certification
- ISO 14001:2015 Environmental Management System Certification
- ISO 45001:2018 Occupational Health & Safety Certification
- International 3C compulsory certificates
- Tank container CCS certificates
- Multiple invention patents
Our products are exported to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe, receiving favorable feedback from global customers.
Manufacturing Process
Certifications
Customer Photos
Project Showcase
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% balance before delivery from factory.
L/C: L/C price is higher than T/T price.
We provide photos and video of finished truck before balance payment.
L/C: L/C price is higher than T/T price.
We provide photos and video of finished truck before balance payment.
Q2. Delivery Terms
Available terms: EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP.
We primarily handle FOB, CIF, DAF.
We primarily handle FOB, CIF, DAF.
Q3. Delivery Time
Standard delivery: 10-20 days after receiving advance payment.
Right-hand drive chassis require longer lead time than left-hand drive.
Exact delivery time depends on order items and quantity.
Right-hand drive chassis require longer lead time than left-hand drive.
Exact delivery time depends on order items and quantity.
Q4. Quality and Warranty
Experienced engineers and workers ensure strict quality control according to state special trucks technical specifications.
100% testing before delivery.
Warranty: 12 months with free spare parts.
100% testing before delivery.
Warranty: 12 months with free spare parts.
Q5. How to Trust Us?
BV factory audit certified.
Option for third-party factory inspection.
15+ years experience in special truck manufacturing.
Option for third-party factory inspection.
15+ years experience in special truck manufacturing.
Q6. Visiting Our Factory
Location: Suizhou City, Hubei Province, China.
Transportation: Arrive in Wuhan (capital of Hubei Province), our driver will pick you up from Wuhan Railway Station or Tianhe Airport.
Invitation letters available upon request with your personal and company information.
Transportation: Arrive in Wuhan (capital of Hubei Province), our driver will pick you up from Wuhan Railway Station or Tianhe Airport.
Invitation letters available upon request with your personal and company information.
