Pure Electric Urban Compression Garbage Truck Compactor for Environmentally Friendly Waste Disposal
| MOQ: | 1 |
| Price: | $16,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric urban garbage truck
,compression garbage compactor truck
,environmentally friendly waste disposal truck
Product Description

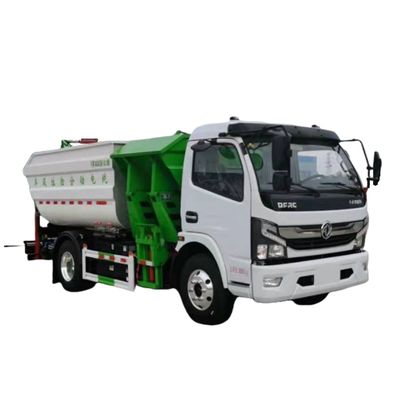

Pure Electric Urban Compression Garbage Truck Compactor
Environmentally friendly waste disposal solution with advanced compression technology.
Technical Specifications
Vehicle Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Name | Pure electric sorting garbage transport truck | Product Model | HTT 5090ZFJBEV |
| Gross Mass (Kg) | 8995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 2800 | Outline Dimension (mm) | 6420×2270×2845 |
| Curb Weight (Kg) | 6000 | Axle Weight | 2995/7000 |
| Number of Cab Members | 2,3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/35 | Front/Rear Suspension (mm) | 1123/2037 |
| Wheel Base | 3300,3800 | Top Vehicle Speed (Km/h) | 90 |
Chassis Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Chassis Model | EQ1090KACEV2 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 9.5R17.5 14PR,8.25R16LT 14PR | Number of Steel Plate Spring Sheets | 8/10+7 |
| Front Gauge (mm) | 1780 | Rear Track (mm) | 1642 |
| Fuel Types | Pure electric | ABS | Yes |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Maximum Power of Chassis Motor | 120kw | Rated Power of Mounted Motor | 10KW |
| Battery Pack Rated Voltage | 540V | Loading Consumes Power Per Hour | 6KWH |
| Battery Capacity | 121KWH | Charging Pile Power Recommendation | 120KW |
| Underassis Constant Speed Range | 280 KM | Charging Time (Recommended Power) | About 1 hour |
Engine Specifications
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ370XS-LKM0853 | - | 120 | 163 |
After-Sales Service
If any after-sales issues occur, please contact our customer service team immediately. We will promptly arrange personnel to resolve the problem for you.
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and accessories. Located in Suizhou City, Hubei Province (China's special truck capital), we offer a comprehensive range of vehicles including:
- Dangerous goods tank trucks
- Tank containers
- Chemical storage tanks
- Refrigerated trucks
- Emergency rescue vehicles
- Sanitation vehicles
Our products meet international standards with ISO 9001, ISO 14001, and ISO 45001 certifications, and have been exported to over 30 countries worldwide.
Manufacturing Process
Certifications
Customer References
Project Showcase
Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% balance before delivery
L/C: Available (L/C price higher than T/T price)
We provide photos/video of finished truck before balance payment
Q2. Delivery Terms
Available terms: EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP
Mainly handle FOB, CIF, DAF
Q3. Delivery Time
Standard: 10-20 days after receiving deposit
Right-hand drive vehicles require longer lead time
Exact timing depends on order specifics
Q4. Quality & Warranty
Strict quality control following state special truck specifications
100% testing before delivery
12-month warranty with free spare parts
Q5. How to Trust Us?
BV factory audit certified
15+ years industry experience
Third-party inspections welcome
Q6. Factory Visit
Location: Suizhou City, Hubei Province, China
Access via Wuhan (capital of Hubei Province)
We provide pickup service from Wuhan railway station/airport
Invitation letters available upon request
