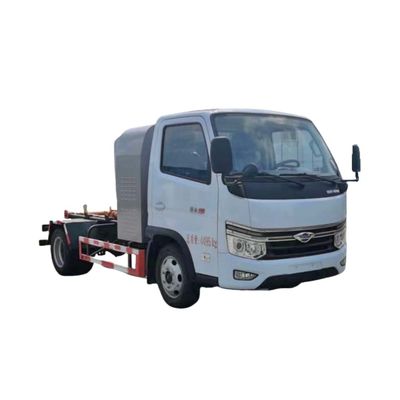

Pure Electric Self-Handling Garbage Truck with Hook Lift and Compactor Container Energy Type
| MOQ: | 1 |
| Price: | $17,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric self-handling garbage truck
,hook lift compactor garbage truck
,sanitation truck with compactor container
Product Description
Pure Electric Self-Handling Garbage Truck with Hook Lift and Compactor Container
Product Parameters
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric self-handling garbage truck | Product Model | HTT 5043ZZZBEV |
| Gross Mass (Kg) | 4495 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1070 | Outline Dimension (mm) | 5650×1730×2450,2550 |
| Curb Weight (Kg) | 3295 | Axle Weight | 2995/7000 |
| Number of Cab Members (person) | 2 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 16/35 | Front Suspension / Rear Suspension (mm) | 1180/1470 |
| Wheel Base | 3360 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1040TACEV4 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 185R15LT 8PR | ||
| Number of Steel Plate Spring Sheets | 3/5 | ||
| Front Gauge (mm) | 1387 | Rear Track (mm) | 1242 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Maximum Power of the Chassis Motor | 70kw | Rated Power of the Mounted Motor | 7.5KW |
| Battery Pack Rated Voltage | 386V | The Loading Consumes Power Per Hour | 6KWH |
| Battery Capacity | 55KWH | Charging Pile Power is Recommended | 120KW |
| Chassis Full Load of Range | 220 KM | Charging Time (under the recommended power) | About 0.6 hours |
| Engine Type | TZ180XSA02 | Power (Kw) | 70 |
| Displacement (ml) | Horsepower | 95 | |
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you.
