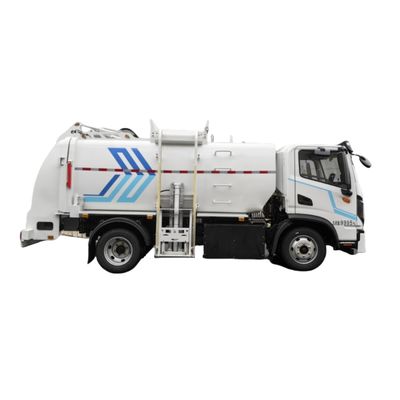

High Capacity Pure Electric Garbage Truck with Expandable Bin and Swift Recharging Technology
| MOQ: | 1 |
| Price: | $20,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
electric garbage truck with expandable bin
,high capacity sanitation cleaning truck
,swift recharging electric garbage truck
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Name | Pure electric restaurant-kitchen garbage truck | Product Model | HTT 5100TCABEV |
| Gross Mass (Kg) | 9995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 3700,3500 | Outline Dimension (mm) | 6420×2270×2845 |
| Curb Weight (Kg) | 6100,6300 | Axle Weight | 2995/7000 |
| Number of Cab Members | 2,3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/35 | Front/Rear Suspension (mm) | 1275/1785 |
| Wheel Base | 3360 | Top Vehicle Speed (Km/h) | 90 |
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Chassis Model | CL1100JBEV | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Size | 245/70R19.5 16PR | Number of Steel Spring Sheets | 8/9+7 |
| Front Gauge (mm) | 1780 | Rear Track (mm) | 1642 |
| Fuel Type | Pure electric | ABS | Yes |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Battery Level (kWh) | 128.86 | Rated/Peak Rotation Speed (rpm) | 5730/12000 |
| Motor Type | Permanent magnet synchronous motor | Loading Power Consumption (KWH) | 20 |
| Rated/Peak Power (kW) | 120/200 | Driving Range (km) | 220 |
| Rated/Peak Torque (Nm) | 200/500 | Charging Time (min) | 35 |
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ230XSZ50 | - | 200 | 272 |
If any after-sales issues occur, please contact our customer service team immediately. We will promptly arrange personnel to resolve the problem for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer specializing in the independent R&D, manufacturing, sales, and import/export trading of special trucks and truck accessories. As a national high-tech enterprise and SRDI enterprise, we were founded in February 2009 in Suizhou, Hubei Province.
Our main products include: dangerous goods tank trucks, tank containers, chemical storage tanks, dangerous goods vans, refrigerated trucks, testing vehicles, emergency rescue vehicles, engineering vehicles, sanitation vehicles, special vehicle parts, and used truck trading.
With professional technical teams, experienced management, and efficient sales teams, our products lead domestic standards while expanding internationally. We maintain ISO 9001, 14001, and 45001 certifications, along with international 3C and CCS certificates, and hold multiple invention patents.
Adhering to our philosophy of "Create industry quality products. Strive to be an industry pioneer," we provide intelligent solutions and cost-effective products that have been exported to over 30 countries worldwide.
T/T: 30% deposit, 70% balance before delivery from factory.
L/C: L/C price is higher than T/T price.
We provide photos and videos of finished trucks before balance payment.
Available terms: EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP.
Mainly FOB, CIF, DAF.
Typically 10-20 days after receiving advance payment. Exact time depends on order specifics.
Right-hand drive chassis require longer production time than left-hand drive.
Experienced workers and engineers ensure quality control according to state specifications.
100% testing before delivery.
12-month warranty with free spare parts during warranty period.
BV factory audit certified.
Third-party inspections welcome.
15+ years experience in special truck manufacturing.
Located in Suizhou City, Hubei Province, China.
We provide pickup service from Wuhan railway station or Tianhe airport.
Invitation letters available upon request with company information.
