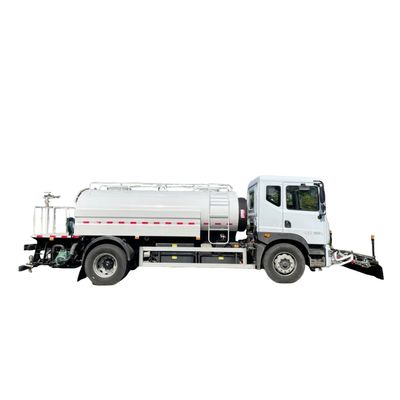

Pure Electric Water Mist Sprinkler Truck for Landscaping and Energy Efficiency
| MOQ: | 1 |
| Price: | $21,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
electric water mist sprinkler truck
,landscaping sprinkler truck with warranty
,energy efficient sanitation cleaning truck
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric cleaning sprinkler truck | Product Model | HTT5180GXSBEV |
| Gross Mass (Kg) | 18000 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 8525 | Outline Dimension (mm) | 7950,8490,9050,8110,8250,8360,8730×2520×2850 |
| Curb Weight (Kg) | 9280 | Axle Weight | 6500/11500 |
| Number of Cab Members | 3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 19/11,13/11,10/11 | Front Suspension / Rear Suspension (mm) | 1260/2120 |
| Wheel Base | 4500 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1181DACEV4 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 295/80R22.5 18PR | Number of Steel Plate Spring Sheets | 8/10+7 |
| Front Gauge (mm) | 1910,1980 | Rear Track (mm) | 1865 |
| Fuel Types | Pure electric | ABS | Yes |
| Chassis Wheelbase | 5300mm | Battery Brand | Ningde era |
| Rated / Peak Power (kW) | 120/180 | Rated Power of the Mounted Motor | 80 KW |
| Upload Consumes Power Per Hour | 40KWH | Rated / Peak Rotation Speed (rpm) | 2292/4500 |
| Rated / Peak Torque (Nm) | 500/1000 | Battery Level (kWh) | 210.56 |
| Driving Range (km) | 280 | Charging Time (h) | 1.5 |
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ366XS50E | - | 180 | 245 |
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to resolve the issue for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. It is a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province (the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China), Huate's main products include:
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
With professional technical team, strong management team, and efficient sales team, Huate products lead domestic advanced levels while expanding internationally. The company has passed GB/T19001-2016 (ISO9001:2015) quality system, GB/T24001-2016 (ISO14001:2015) environmental system, and GB/T45001-2020 (ISO45001:2018) occupation health safety system certifications. Products have international 3C compulsory certificate and tank container CCS certificate, with multiple invention patents.
Adhering to the business philosophy of "Create industry quality products. Strive to be an industry pioneer", Huate provides intelligent solutions and has exported products to over 30 countries across Africa, Middle East, Southeast Asia, America and Europe.
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price.
We provide photos and video of finished truck before balance payment.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
Mainly FOB, CIF, DAF.
Typically 10-20 days after receiving advance payment. Exact time depends on order items and quantity.
(Right hand drive chassis requires longer delivery than left hand drive. Detailed clauses subject to contract.)
Experienced workers and engineers ensure quality control following state special trucks technical and safety specifications. 100% testing before delivery.
Warranty: 12 months with free spare parts.
Company passed BV factory audit. Third-party inspection available.
15+ years experience in truck manufacturing and trading.
Factory located in Suizhou City, Hubei Province, China.
Access via Wuhan City (capital of Hubei province) by train or plane. We provide pickup service from Wuhan railway station or Tianhe airport.
Invitation letter available upon request with your private and company information.
