Pure Electric Unloaded Skip Loader Hook Lift Garbage Truck for Eco-Friendly Waste Management
| MOQ: | 1 |
| Price: | $17,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric unloaded skip loader truck
,hook lift garbage truck
,eco-friendly waste management truck
Product Description

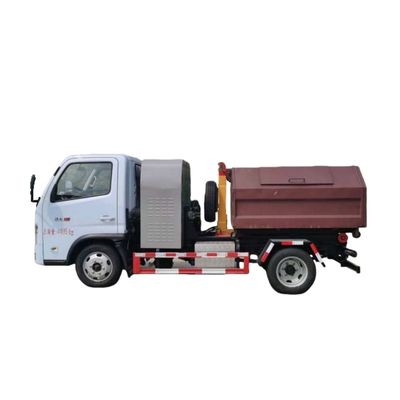

Pure Electric Unloaded Skip Loader Hook Lift Garbage Truck for Eco-Friendly Waste Management
This pure electric garbage truck is designed for efficient and eco-friendly waste management operations, featuring advanced electric power technology for reduced emissions and lower operating costs.
Technical Specifications
Vehicle Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Name | Pure electric self-handling garbage truck | Product Model | HTT 5043ZZZBEV |
| Gross Mass (Kg) | 4495 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1070 | Outline Dimension (mm) | 5650×1730×2450,2550 |
| Curb Weight (Kg) | 3295 | Axle Weight | 2995/7000 |
| Number of Cab Members | 2 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/35 | Front/Rear Suspension (mm) | 1180/1470 |
| Wheel Base | 3360 | Top Vehicle Speed (Km/h) | 90 |
Chassis Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Chassis Model | EQ1040TACEV4 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 185R15LT 8PR | Number of Steel Plate Spring Sheets | 3/5 |
| Front Gauge (mm) | 1387 | Rear Track (mm) | 1242 |
| Fuel Type | Pure electric | ABS | Yes |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Maximum Power of Chassis Motor | 70kw | Rated Power of Mounted Motor | 7.5KW |
| Battery Pack Rated Voltage | 386V | Loading Consumes Power Per Hour | 6KWH |
| Battery Capacity | 55KWH | Charging Pile Power Recommendation | 120KW |
| Chassis Full Load Range | 220 KM | Charging Time (Recommended Power) | About 0.6 hours |
Engine Specifications
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ180XSA02 | - | 70 | 95 |
After-sales service: If after-sales problems occur, please contact our customer service personnel immediately, and we will promptly arrange personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. We are a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province (known as the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China), Huate specializes in:
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
With professional technical teams, experienced management, and efficient sales teams, our products lead domestic standards while serving international markets. We maintain:
- ISO 9001:2015 Quality Management System
- ISO 14001:2015 Environmental Management System
- ISO 45001:2018 Occupational Health & Safety System
- International 3C certification
- Tank container CCS certificate
- Multiple invention patents
Our products are exported to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe, earning favorable reviews from domestic and international clients.
Manufacturing Process
Certifications
Customer Photos
Project Showcase
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% before delivery from factory
L/C: L/C price is higher than T/T price
We provide photos and video of finished truck before balance payment
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
Mainly FOB, CIF, DAF
Q3. Delivery Time
Typically 10-20 days after receiving advance payment
Exact time depends on order items and quantity
Right-hand drive chassis require longer delivery than left-hand drive
Q4. Quality and Warranty
Experienced workers and engineers ensure quality control
Strict compliance with state special trucks technical specifications
100% testing before delivery
12-month warranty with free spare parts
Q5. How to Trust Us?
BV factory audit certified
Option for third-party factory inspection
15+ years experience in truck manufacturing
Q6. Visiting Our Factory
Located in Suizhou City, Hubei Province, China
Transportation: Train or plane to Wuhan City (capital of Hubei)
We provide pickup service from Wuhan railway station or Tianhe airport
Invitation letters available upon request
