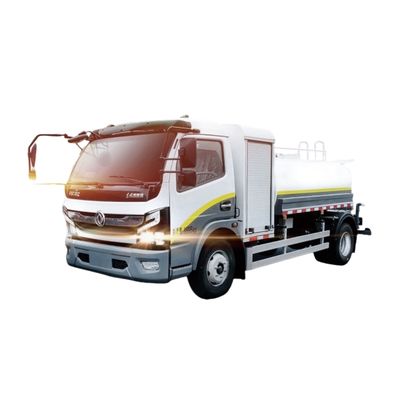

Eco Friendly Dongfeng 4x2 Electric Water Truck with 80kW CATL Battery Power
| MOQ: | 1 |
| Price: | $25,500/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
Eco Friendly 4x2 Electric Water Truck
,Electric Sanitation Truck with CATL Battery
,Dongfeng Water Truck with 80kW Power
Product Description
Eco Friendly Dongfeng 4x2 Electric Water Truck with 80kW CATL Battery Power
Product Overview
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric sprinkler truck | Product Model | HTT5080ZYSBEV |
| Gross Mass (Kg) | 8995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 3620 | Outline Dimension (mm) | 6410×217×2480 |
| Curb Weight (Kg) | 5180,4950 | Axle Weight | 4000/8495 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 21/14 | Front Suspension / Rear Suspension (mm) | 1123/1487 |
| Wheel Base | 3800 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1121KACEV1 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 255/70R22.5 16PR | ||
| Number of Steel Plate Spring Sheets | 8/10+7 | ||
| Front Gauge (mm) | 1400 | Rear Track (mm) | 1380 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3800mm | Battery Brand | Ningde era |
| Rated / Peak Power (kW) | 80/145 | Rated Power of the Mounted Motor | 80 KW |
| Upload Consumes Power Per Hour | 40KWH | Rated / Peak Rotation Speed (rpm) | 5730/12000 |
| Rated / Peak Torque (Nm) | 611/1800 | Battery Level (kWh) | 144.86 |
| Driving Range (km) | 320 | Charging Time (min) | 50 |
| Engine Type | TZ400XSD16 | Power (Kw) | 220 (300 horsepower) |
After-Sales Service
If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you.
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a "national high-tech" enterprise and "SRDI" enterprise. Our company was founded in February 2009, located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China.
Manufacturing Process
Certifications
Customer References
Project Showcase
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T, 30% as deposit, and 70% before delivery from factory.
L/C, L/C price is higher than T/T price.
We will show you photos and video of the finished truck before you pay the balance.
L/C, L/C price is higher than T/T price.
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of Delivery
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF.
We mainly do FOB, CIF, DAF.
Q3. Delivery Time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
(If you need the right hand drive chassis, delivery time is longer than Left hand drive truck, Detailed clauses are subject to contract.)
(If you need the right hand drive chassis, delivery time is longer than Left hand drive truck, Detailed clauses are subject to contract.)
Q4. Quality and Warranty
We have rich experience workers and engineer to control quality before and on production, we strictly follow STATE special trucks technical specification and safety production specification. We 100% test trucks before delivery.
Our Warranty: 12 months
We will provide the spare parts for free in one year.
Our Warranty: 12 months
We will provide the spare parts for free in one year.
Q5. How to Trust Us?
Our company pass BV factory audit, And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6. Visit Our Factory
Our factory are in Suizhou city, Hubei province, China.
You can take train or plane to arrive Wuhan city (Wuhan city is the capital of Hubei province, near our factory). Our driver will pick up you at Wuhan railway station or Wuhan Tianhe airport.
If need the invitation letter, please send your private information and company information to me.
You can take train or plane to arrive Wuhan city (Wuhan city is the capital of Hubei province, near our factory). Our driver will pick up you at Wuhan railway station or Wuhan Tianhe airport.
If need the invitation letter, please send your private information and company information to me.
