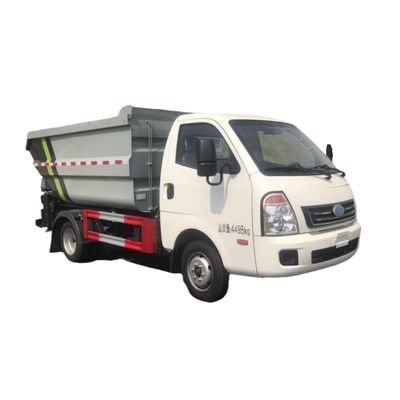

Pure Electric Self-Loading Garbage Truck Meeting the Demands of Custom's Requirements for Waste Management
| MOQ: | 1 |
| Price: | $22,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
electric self-loading garbage truck
,custom waste management truck
,sanitation cleaning truck with warranty
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric self-handling type garbage truck | Product Model | HTT5045ZZZEV |
| Gross Mass (Kg) | 4495 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1265 | Outline Dimension (mm) | 5500 ×1850×2160 |
| Curb Weight (Kg) | 3100 | Axle Weight | 1500/2995 |
| Number of Cab Members | 2 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 19/10 | Front Suspension / Rear Suspension (mm) | 1200/1500 |
| Wheel Base | 2800 | Top Vehicle Speed (Km/h) | 85 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | HQG1045EV | Vehicle Height | 2160mm |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 7.50R16LT 16PR | Number of Steel Plate Spring Sheets | 3/2+3,8/10+7,3/10+7 |
| Front Gauge (mm) | 1375 | Rear Track (mm) | 1310 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 5300mm | Battery Brand | Ningde era |
| Maximum Power of the Chassis Motor | 160KW | Rated Power of the Mounted Motor | 80 KW |
| Upload Consumes Power per Hour | 40KWH | Charging Time | About 1 hour |
| Battery Capacity | 41.86kwh | Equistant Range (km) | ≥280 |
T/T: 30% deposit, 70% balance before delivery from factory.
L/C: L/C price is higher than T/T price.
We provide photos and video of the finished truck before balance payment.
Available options: EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP.
We mainly handle FOB, CIF, DAF.
Typically 10-20 days after receiving advance payment.
Right-hand drive chassis require longer delivery time than left-hand drive.
Detailed clauses are subject to contract.
Strict quality control following state special trucks technical specifications.
100% testing before delivery.
12-month warranty with free spare parts within one year.
BV factory audit certified.
Option for third-party factory inspection.
15+ years experience in special vehicle manufacturing.
Located in Suizhou City, Hubei Province, China.
Transportation options to Wuhan City (capital of Hubei Province).
We provide pick-up service from Wuhan railway station or Tianhe airport.
Invitation letter available upon request with company information.
