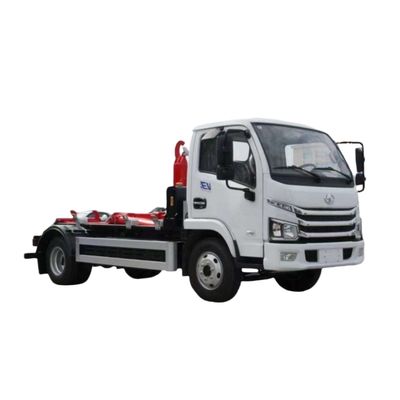

Energy Type Pure Electric Green Card Hook Arm Garbage Truck for Custom's Requirement in Yuejin Energy
| MOQ: | 1 |
| Price: | $23,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
pure electric garbage truck
,hook arm sanitation truck
,custom green card garbage truck
| Vehicle Parameters | |||
|---|---|---|---|
| Product Name | Pure electric hook arm garbage truck | Product Model | HTT5080ZYSBEV |
| Gross Mass (Kg) | 18000 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 8590, 8525, 8310, 8245 | ||
| Outline Dimension (mm) | 7330, 7380 × 2500, 2550 × 3150, 3210 | ||
| Curb Weight (Kg) | 9280, 9560 | Axle Weight | 2750/5745 |
| Number of Cab Members | 2, 3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/18, 16/17 | Front/Rear Suspension (mm) | 1450/1380, 1450/1430 |
| Wheel Base | 6500/11500 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Specifications | |||
|---|---|---|---|
| Chassis Model | ZZ1186N451GZ1EV | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Size | 295/80R22.5 18PR, 11.00R20 18PR, 12R22.5 18PR | ||
| Number of Steel Plate Spring Sheets | 7/7+6, 11/9+8, 3/9+8, 3/3+2 | ||
| Front Gauge (mm) | 1960, 2015, 2045 | Rear Track (mm) | 1850 |
| Fuel Type | Pure electric | ABS | Yes |
| Chassis Wheelbase | 5300mm | Battery Brand | Ningde era |
| Rated/Peak Power (kW) | 120/200 | Rated Power of Mounted Motor | 80 KW |
| Upload Consumes Power per Hour | 40KWH | Rated/Peak Rotation Speed (rpm) | 5730/12000 |
| Rated/Peak Torque (Nm) | 200/500 | Battery Level (kWh) | 81 |
| Driving Range (km) | 270 | Charging Time (min) | 45 |
- Dangerous goods tank trucks and tank containers
- Chemical storage tanks and vans
- Refrigerated trucks and testing vehicles
- Emergency rescue and engineering vehicles
- Sanitation vehicles and special vehicle parts
T/T: 30% deposit, 70% balance before delivery. L/C available (higher price than T/T). We provide photos/videos of finished truck before balance payment.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP. Mainly FOB, CIF, DAF.
Typically 10-20 days after receiving deposit. Right-hand drive vehicles require longer lead time than left-hand drive. Exact terms specified in contract.
12-month warranty with free spare parts. All trucks undergo 100% testing before delivery, manufactured according to state special truck technical specifications.
We pass BV factory audits and welcome third-party inspections. With 15+ years in special truck manufacturing, we maintain long-term relationships with global clients.
Yes, we're located in Suizhou City, Hubei Province. We provide airport/station pickup from Wuhan (provincial capital) and can issue invitation letters upon request.
