Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Dust Suppression Vehicle
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
electric waste compressor truck
,sanitation waste compression solution
,Pure Electric 5101ZYSBEV compactor
Product Description
Pure Electric Waste Compressor 5101ZYSBEV - The Ideal Solution for Streamlined Waste Compression
Product Overview

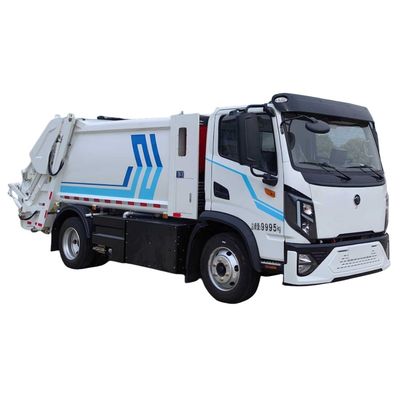

The HTT 5101ZYSBEV is a pure electric compressed type garbage truck designed for efficient waste management operations with zero emissions.
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric compressed type garbage truck | Product Model | HTT 5101ZYSBEV |
| Gross Mass (Kg) | 9995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 3010,2660,2750,2560,2410 | Outline Dimension (mm) | 7210,7100,6950×2260 ×2600 |
| Curb Weight (Kg) | 6790,7140,7050,7240,7390 | Axle Weight | 2995/7000 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 16/35 | Front Suspension / Rear Suspension (mm) | 1275/2195,1275/2085 |
| Wheel Base | 3360 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | CL1100JBEV | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 245/70R19.5 16PR | Number of Steel Plate Spring Sheets | 8/9+7 |
| Front Gauge (mm) | 1780 | Rear Track (mm) | 1642 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Rated / Peak Power (kW) | 120/200 | Battery Level (kWh) | 128.86 |
| Rated / Peak Torque (Nm) | 200/500 | Box Volume | 7 m3 |
| Rated / Peak Rotation Speed (rpm) | 5730/12000 | Reduction Ratio | ≥2.5 |
| Driving Range (km) | 220 | Charging Time (min) | 35 |
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ230XSZ50 | - | 200 | 272 |
After-Sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly address and resolve any issues for you.
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and truck accessories. Founded in 2009 and located in Suizhou, Hubei Province (China's special truck capital), we offer a comprehensive range of vehicles including dangerous goods tank trucks, chemical storage tanks, refrigerated trucks, emergency rescue vehicles, and sanitation vehicles.
Our company maintains ISO 9001, ISO 14001, and ISO 45001 certifications, with products meeting international 3C standards and CCS certification. We participate in national and industry standard development and hold multiple invention patents.
With over 15 years of experience, our products are exported to more than 30 countries across Africa, Middle East, Southeast Asia, America, and Europe.
Manufacturing Process
Certifications
Customer References
Project Showcase
Packaging
Frequently Asked Questions
Q1. Payment Terms
- T/T: 30% deposit, 70% before delivery from factory
- L/C: L/C price is higher than T/T price
- We provide photos and video of finished truck before balance payment
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc. We mainly handle FOB, CIF, DAF.
Q3. Delivery Time
Typically 10-20 days after receiving advance payment. Right-hand drive vehicles require longer lead time than left-hand drive. Exact timing depends on order specifics.
Q4. Quality and Warranty
- Experienced workers and engineers ensure strict quality control
- 100% testing before delivery
- 12-month warranty with free spare parts
- Compliance with state special trucks technical specifications
Q5. How to Trust Us?
- BV factory audit certification
- Option for third-party factory inspection
- 15+ years industry experience
Q6. Visiting Our Factory
Our factory is located in Suizhou City, Hubei Province. Visitors can travel to Wuhan (provincial capital) by train or plane, and we provide pickup service from Wuhan railway station or Tianhe airport. Invitation letters available upon request with your personal and company information.
