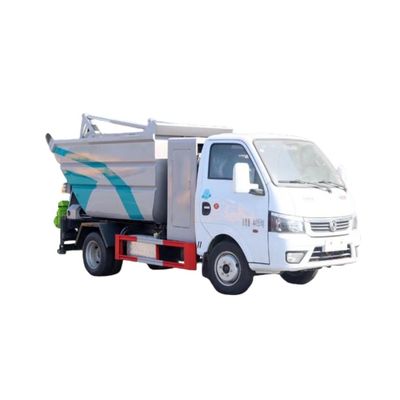

Small Garbage Collection Truck Self-Loading Transfer Bin-Lifter Energy type Pure Electric
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
small electric garbage truck
,self-loading sanitation truck
,pure electric transfer bin-lifter
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric self-handling type garbage truck | Product Model | HTT 5043ZZZBEV |
| Gross Mass (Kg) | 4495 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1070 | Outline Dimension (mm) | 5650X1730X2450,2550 |
| Curb Weight (Kg) | 3295 | Axle Weight | 1500/2995 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 20/13 | Front Suspension / Rear Suspension (mm) | 1180/1470 |
| Wheel Base | 3360 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1040TACEV4 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 245/70R19.5 16PR | Number of Steel Plate Spring Sheets | 3/5 |
| Front Gauge (mm) | 1387 | Rear Track (mm) | 1242 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Rated Power of the Mounted Motor | 7.5KW | Maximum Power of the Chassis Motor | 70kw |
| The Loading Consumes Power Per Hour | 6KWH | Battery Pack Rated Voltage | 386V |
| Charging Pile Power is Recommended | 120KW | Battery Capacity | 55KWH |
| Charging Time (Under the Recommended Power) | About 0.6 hours | Chassis Full Load of Range | 220 KM |
If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a "national high-tech" enterprise and "SRDI" enterprise.
Our company was founded in February 2009, located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China.
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading and other subdivision products
T/T, 30% as deposit, and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
(if you need the right hand drive chassis, delivery time is longer than Left hand drive truck, Detailed clauses are subject to contract.)
We have Rich experience workers and engineer to control quality before and on production, we strictly follow STATE special trucks technical specification and safety production specification. we 100% test trucks before delivery.
Our Warranty: 12 months
We will provide the spare parts for free in one year.
Our company pass BV factory audit, And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Our factory are in suizhou city, hubei province, china.
You can take train or plane to arrive wuhan city (wuhan city is the capital of hubei province, near our factory). and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter, pls send your private information and company information to me.
