Energy Type Pure Electric Electric Compression Garbage Truck 5101ZYSBEV for Custom's Requirement Waste Disposal Solution
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Dust Suppression Vehicle
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
pure electric garbage truck
,electric compression garbage truck
,custom waste disposal truck
Product Description

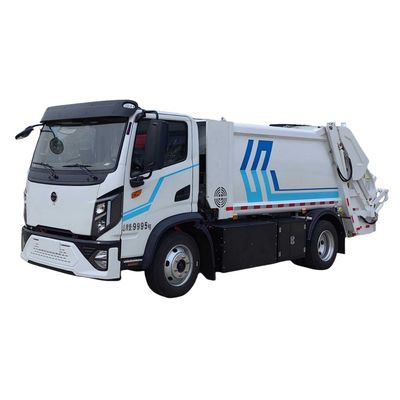

Energy Type Pure Electric Electric Compression Garbage Truck 5101ZYSBEV
Custom waste disposal solution designed for efficient garbage collection and compression.
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric compressed type garbage truck | Product Model | HTT 5101ZYSBEV |
| Gross Mass (Kg) | 9995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 3010,2660,2750,2560,2410 | Outline Dimension (mm) | 7210,7100,6950×2260 ×2600 |
| Curb Weight (Kg) | 6790,7140,7050,7240,7390 | Axle Weight | 2995/7000 |
| Number of Cab Members | 2-3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/35 | Front/Rear Suspension (mm) | 1275/2195,1275/2085 |
| Wheel Base | 3360 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | CL1100JBEV | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 245/70R19.5 16PR | Number of Steel Plate Spring Sheets | 8/9+7 |
| Front Gauge (mm) | 1780 | Rear Track (mm) | 1642 |
| Fuel Types | Pure electric | ABS | Yes |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Rated/Peak Power (kW) | 120/200 | Battery Level (kWh) | 128.86 |
| Rated/Peak Torque (Nm) | 200/500 | Box Volume | 7 m³ |
| Rated/Peak Rotation Speed (rpm) | 5730/12000 | Reduction Ratio | ≥2.5 |
| Driving Range (km) | 220 | Charging Time (min) | 35 |
After-Sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and truck accessories. Founded in 2009 and located in Suizhou, Hubei Province (China's special truck capital), we offer a comprehensive range of vehicles including dangerous goods tankers, refrigerated trucks, emergency rescue vehicles, and sanitation vehicles.
Our products meet international standards with 3C certification and CCS certification for tank containers. With over 15 years of experience, we export to more than 30 countries across Africa, Middle East, Southeast Asia, America, and Europe.
Manufacturing Process
Certifications
Customer Photos
Project Showcase
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% before delivery. L/C available (higher price than T/T). We provide photos and video of finished truck before final payment.
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP available. We mainly handle FOB, CIF, DAF.
Q3. Delivery Time
Typically 10-20 days after receiving advance payment. Right-hand drive vehicles require longer lead time than left-hand drive.
Q4. Quality and Warranty
12-month warranty with strict quality control following state special truck specifications. 100% testing before delivery. Free spare parts within warranty period.
Q5. How to Trust Us?
Our factory has passed BV audit. You may arrange third-party inspection. 15+ years experience in special truck manufacturing.
Q6. Visiting Our Factory
Located in Suizhou City, Hubei Province. We provide pickup service from Wuhan railway station or airport. Invitation letters available upon request.
