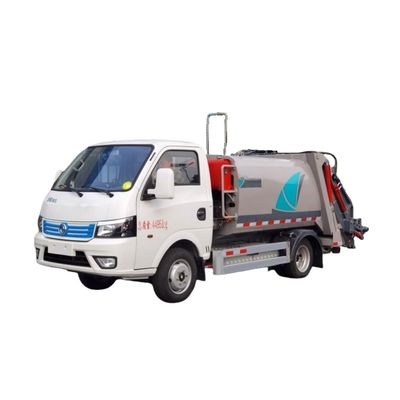

Energy Type Pure Electric L5041ZYSBEV Dongfeng Compactor Truck for Custom's Requirements and Smooth Garbage Compression
| MOQ: | 1 |
| Price: | $23,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
electric compactor truck
,Dongfeng sanitation truck
,garbage compression truck
| Parameter | Value |
|---|---|
| Product Name | Pure electric compression truck |
| Product Model | HTT 5041ZYSBEV |
| Gross Mass (Kg) | 4495 |
| Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 785,615 |
| Outline Dimension (mm) | 5995,5800×2000,2050×2100,2400 |
| Curb Weight (Kg) | 3580,3750 |
| Axle Weight | 2995/7000 |
| Number of Cab Members | 2,3 |
| Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/35 |
| Front/Rear Suspension (mm) | 1180/1720,1180/1820 |
| Wheel Base | 2800 |
| Top Vehicle Speed (Km/h) | 90 |
| Parameter | Value |
|---|---|
| Chassis Model | CL1100JBEV |
| Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 |
| Number of Tires | 6 |
| Tyre Size | 185R15LT 8PR |
| Number of Steel Plate Spring Sheets | 3/5 |
| Front Gauge (mm) | 1390 |
| Rear Track (mm) | 1240,1324 |
| Fuel Type | Pure electric |
| ABS | Yes |
| Chassis Wheelbase | 3300,3850 |
| Battery Brand | Ningde era |
| Maximum Power of Chassis Motor | 100 KW |
| Rated Power of Mounted Motor | 20KW |
| Battery Pack Rated Voltage | 322 V |
| Loading Consumes Power Per Hour | 15KWH |
| Battery Capacity | 55KWH |
| Charging Pile Power Recommendation | 120KW |
| Charging Time (Recommended Power) | About 1 hour |
| Engine Type | EQ1040BTZEVJ |
| Power (Kw) | 100 |
| Horsepower | 135 |
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to resolve the issue for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. We are a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province (the hometown of Yan Emperor and ancient music of chimes, and China's capital of special trucks), our main products include:
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
We have fully passed GB/T19001-2016 (ISO9001:2015) quality system, GB/T24001-2016 (ISO14001:2015) environmental system, and GB/T45001-2020 (ISO45001:2018) occupational health safety system certifications. Our products have passed international 3C compulsory certification and tank container CCS certification, with multiple invention patents.
Our products are exported to Africa, Middle East, Southeast Asia, America, Europe and more than 30 countries, receiving favorable reviews from domestic and international users.
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF.
Generally 10-20 days after receiving advance payment. Specific delivery time depends on order items and quantity.
(Right hand drive chassis require longer delivery time than left hand drive trucks. Detailed clauses are subject to contract.)
Our experienced workers and engineers strictly follow STATE special trucks technical specifications and safety production standards. We 100% test trucks before delivery.
Warranty: 12 months with free spare parts.
Our company has passed BV factory audit. You can arrange third party inspection.
We have over 15 years experience in special truck manufacturing.
Our factory is in Suizhou City, Hubei Province, China.
You can take train/plane to Wuhan City (capital of Hubei Province), and our driver will pick you up at Wuhan Railway Station or Wuhan Tianhe Airport.
If you need invitation letter, please send your private and company information to us.
