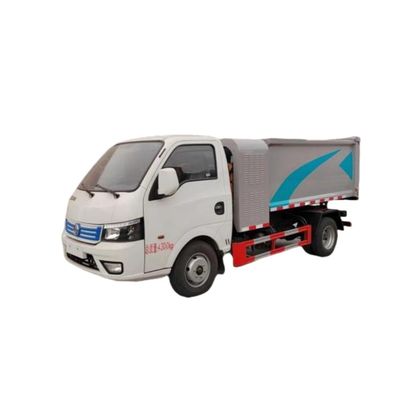

Self Loading Self Discharging Garbage Truck Powered by Pure Electric
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
pure electric garbage truck
,self loading sanitation truck
,self discharging cleaning truck
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric self-handling type garbage truck | Product Model | HTT 5100TCABEV |
| Gross Mass (Kg) | 4300 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1320 | Outline Dimension (mm) | 5380×1660,1686×2120,2150 |
| Curb Weight (Kg) | 2850 | Axle Weight | 1400/2900 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 21/19 | Front Suspension / Rear Suspension (mm) | 1180/1200 |
| Wheel Base | 3000 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1041TTZEVJ | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 6.00R15LT 10PR,6.00-14LT 10PR,185R15LT 8PR | ||
| Number of Steel Plate Spring Sheets | 8/9+7 | ||
| Front Gauge (mm) | 1390,1410 | Rear Track (mm) | 1240,1375 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Maximum Power of the Chassis Motor | 140kw | Upper Volume | 3.5 Square |
| Battery Pack Rated Voltage | 386V | Rated Power of the Mounted Motor | 7.5KW |
| Battery Capacity | 66.8KWH | Charging Pile Power Recommendation | 120KW |
| Chassis Full Load Range | 255 KM | Charging Time (under recommended power) | About 0.6 hours |
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to resolve the issue for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating independent R&D, manufacturing, sales, and import/export trading of special trucks and truck accessories. As a national high-tech enterprise and SRDI enterprise, we were founded in February 2009 in Suizhou, Hubei province - the hometown of Yan Emperor and ancient music of chimes, known as China's capital of special trucks.
Our main products include: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series, sanitation vehicle series, special vehicle parts series, and used truck trading.
With professional technical teams, experienced management, and efficient sales teams, our products lead domestic standards while expanding internationally. We maintain GB/T19001-2016 (ISO9001:2015) quality certification, GB/T24001-2016 (ISO14001:2015) environmental certification, and GB/T45001-2020 (ISO45001:2018) occupational health safety certification. Our products hold international 3C compulsory certificates and tank container CCS certificates, with multiple invention patents.
Adhering to our business philosophy "Create industry quality products. Strive to be an industry pioneer," we focus on intelligent, digital core components and provide cost-effective solutions. Our products have been exported to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe, receiving favorable reviews.
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We provide photos and video of finished truck before balance payment.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
Mainly FOB, CIF, DAF.
Typically 10-20 days after receiving advance payment. Exact time depends on order items and quantity.
(Right-hand drive chassis require longer delivery than left-hand drive. Detailed clauses subject to contract.)
Experienced workers and engineers ensure quality control following STATE special trucks technical specifications. 100% testing before delivery.
Warranty: 12 months with free spare parts.
Our company passes BV factory audit. You may arrange third-party inspection.
15+ years experience in truck manufacturing and trading.
Located in Suizhou City, Hubei Province, China.
Arrive via Wuhan (provincial capital) by train/plane - we provide pickup service.
Invitation letters available upon request with your information.
