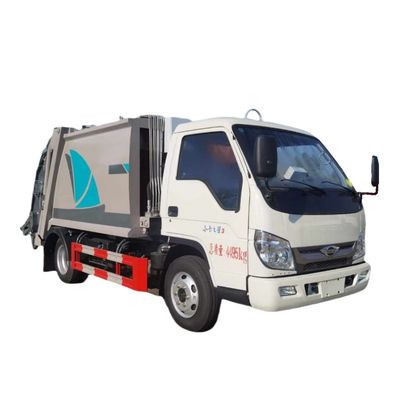

Manual Transmission 5m3 Capacity Diesel Compactor Garbage Truck for Waste Compression
| MOQ: | 1 |
| Price: | $16,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 3 4 5 6
Fuel Type:
Diesel
After-sales Service Provided:
Onsite Installation, Online Support, Free Spare Parts
Color:
Custom's Requirement
Warranty:
1 Year
Highlight:
5m3 diesel compactor garbage truck
,manual transmission waste compression truck
,sanitation cleaning truck with waste compression
Product Description
Manual Transmission 5m³ Capacity Diesel Compactor Garbage Truck for Waste Compression
Product Description
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Compressed garbage truck | Product Model | HTT 5045ZYS6BGX |
| Gross Mass (Kg) | 4495 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 500 | Outline Dimension (mm) | 5995,5730,5830×2090×2450 |
| Curb Weight (Kg) | 3865 | Axle Weight | 1617/2878 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 20/10 | Front Suspension / Rear Suspension (mm) | 1130/1750,1130/1850 |
| Wheel Base | 2850 | Top Vehicle Speed (Km/h) | 105 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | BJ1045V9JB5-54 | Chassis Brand | Truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 6.50R16LT 10PR | Number of Steel Plate Spring Sheets | 7/7+5,7/4+3,7/5+2,3/5+2,2/3+2 |
| Front Gauge (mm) | 1495 | Rear Track (mm) | 1435 |
| Fuel Types | Diesel oil | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Dumpster Volume | 5 Cube |
| Effluent Standard | Euro 3 4 5 6 | ||
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| Q23-115C60 | 2300 | 85 | 115 |
After-Sales Service
If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a "national high-tech" enterprise and "SRDI" enterprise.
Our company was founded in February 2009, located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China.
Huate main products: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series, sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products.
We have professional technical team, strong and experienced management team, efficient domestic and overseas sales team. Huate products not only lead the domestic advanced level, but also towards the international market, forming a diversified and serialized product pattern.
Manufacturing Technique
Certifications
Customer Photos
Project Show
Product Packaging
Frequently Asked Questions
Q1. Payment term
T/T, 30% as despite, and 70% before delivery from factory. L/C, L/C price is higher than T/T price. We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF, FCA, DDU.DAP etc. We mainly do FOB, CIF, DAF.
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. (if you need the right hand drive chassis, delivery time is longer than Left hand drive truck, Detailed clauses are subject to contract.)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production, we strictly follow STATE special trucks technical specification and safety production specification. we 100% test trucks before delivery. Our Warranty: 12 months. We will provide the spare parts for free in one year.
Q5. How to trust us?
Our company pass BV factory audit, And you also can arrange a third party inspect our factory. We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6. Visit our factory
Our factory are in suizhou city, hubei province, china. You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province, near our factory). and our driver will pick up you at wuhan railway station or wuhan tianhe airport. And if need the invitation letter, pls send your private information and company information to me.
