Front Four Rear Eight Carriage Detachable Hook Arm Garbage Truck for Manual Transmission and Municipal Road Cleaning
| MOQ: | 1 |
| Price: | $19,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 3 4 5 6
Fuel Type:
Diesel
After-sales Service Provided:
Onsite Installation, Online Support, Free Spare Parts
Color:
Custom's Requirement
Warranty:
1 Year
Highlight:
detachable hook arm garbage truck
,manual transmission sanitation truck
,municipal road cleaning truck
Product Description

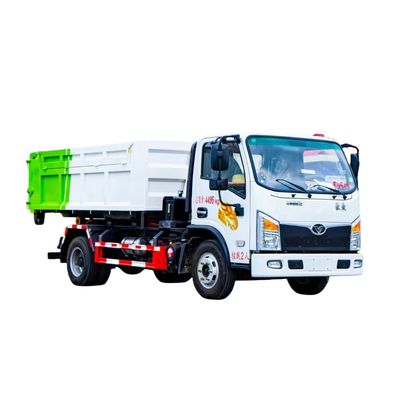

Front Four Rear Eight Carriage Detachable Hook Arm Garbage Truck
Manual transmission municipal road cleaning vehicle with detachable hook arm system.
Technical Specifications
Vehicle Parameters
| Parameter | Value |
|---|---|
| Product Name | Hook arm garbage truck |
| Product Model | HTT 5128ZXXG17FB0 |
| Gross Mass (Kg) | 11995 |
| Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 7865,7565,7470 |
| Outline Dimension (mm) | 5500-6100×1930-2300×2100-2300 |
| Curb Weight (Kg) | 4000,4300,4395 |
| Axle Weight | 4240/7755 |
| Number of Cab Members | 2-3 |
| Number of Axles | 2 |
| Approach/Departure Angle (°) | 20/21 |
| Front/Rear Suspension (mm) | Multiple configurations available |
| Wheel Base | 3280,3650 |
| Top Vehicle Speed (Km/h) | 89 |
Chassis Parameters
| Parameter | Value |
|---|---|
| Chassis Model | ZZ1128G17FB1 |
| Chassis Brand | Truck chassis |
| Number of Axles | 2 |
| Number of Tires | 6 |
| Tyre Size | 245/70R19.5 16PR, 245/70R17.5 18PR |
| Number of Steel Plate Spring Sheets | Multiple configurations available |
| Front Gauge (mm) | 1485-1740 |
| Rear Track (mm) | 1491-1650 |
| Fuel Type | Diesel |
| ABS | Yes |
| Chassis Wheelbase | 3300,3850 |
| Effluent Standard | Euro 4, 5, 6 |
Engine Specifications
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| WP2.5NQ180E62 | 2493 | 132 | 180 |
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and accessories. Established in 2009 and located in Suizhou, Hubei Province, we produce a comprehensive range of vehicles including:
- Dangerous goods tank trucks
- Tank containers
- Chemical storage tanks
- Refrigerated trucks
- Testing vehicles
- Emergency rescue vehicles
- Sanitation vehicles
Our products meet international standards with certifications including ISO 9001, ISO 14001, ISO 45001, and 3C compulsory certification. We export to over 30 countries worldwide.
Manufacturing Process
Certifications
Customer References
Project Showcase
Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% balance before delivery. L/C available (higher price than T/T). We provide photos and video of finished truck before balance payment.
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP available. We primarily handle FOB, CIF, and DAF.
Q3. Delivery Time
Typically 10-20 days after receiving advance payment. Right-hand drive vehicles require longer lead time than left-hand drive. Exact terms specified in contract.
Q4. Quality and Warranty
All vehicles undergo strict quality control and 100% testing before delivery. 12-month warranty with free spare parts during warranty period.
Q5. How to Trust Us?
Our factory has passed BV audit. You may arrange third-party inspection. With 15+ years in special truck manufacturing, we have extensive industry experience.
Q6. Visiting Our Factory
Our factory is in Suizhou City, Hubei Province. Visitors typically arrive in Wuhan (provincial capital) where we provide transportation. Invitation letters available upon request with your company information.
After-Sales Service
For any after-sales issues, please contact our customer service team immediately. We will promptly arrange personnel to resolve your problem.
