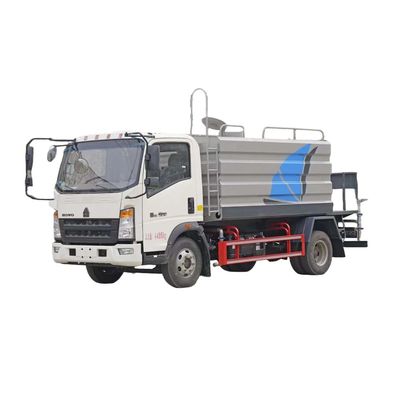

7cbm Garbage Can Trash Bin Cleaning Washing Truck Euro 3 4 5 6 Emission Standard
| MOQ: | 1 |
| Price: | $16,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
7cbm garbage cleaning truck
,trash bin washing truck Euro 5
,sanitation truck Euro 6 emission
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Sprinkler truck | Product Model | HTT 5182GSSG6 |
| Gross Mass (Kg) | 18000 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 611105,11170 | Outline Dimension (mm) | 8315×2500×2910,2950,2980 |
| Curb Weight (Kg) | 6700 | Axle Weight | 6500/11500 |
| Number of Cab Members | 2-3 | Number of Axles | 2 |
| Approach/Departure Angle (°) | 16/11 | Front/Rear Suspension (mm) | 1440/2375 |
| Wheel Base | 4200-6000 | Top Vehicle Speed (Km/h) | 89 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | ZZ1184N5617F1 | Chassis Brand | Truck Chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 10.00R20 18PR, 11R22.5 18PR, 275/80R22.5 18PR, 11.00R20 18PR, 12R22.5 18PR, 295/60R22.5 18PR, 295/80R22.5 18PR | ||
| Number of Steel Plate Spring Sheets | Various configurations available from 3/3+3 to 11/11+9 | ||
| Front Gauge (mm) | 2040-2070 | Rear Track (mm) | 1850-1860 |
| Fuel Type | Diesel | ABS | Yes |
| Chassis Wheelbase | 4200-6000 | Water Tank Volume | 7m³ |
| Effluent Standard | Euro 4/5/6 | Water Sprinkling Pump | 40/50 |
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| WP4.6NQ220E62 | 4580 | 162 | 220 |
If any after-sales issues occur, please contact our customer service team immediately. We will promptly arrange personnel to resolve the problem for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer specializing in the R&D, production, sales, and import/export of special trucks and truck accessories. As a national high-tech enterprise and SRDI enterprise, we have been operating since February 2009 in Suizhou, Hubei Province - known as China's capital of special trucks.
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
Our products meet international standards with 3C compulsory certification and CCS certification for tank containers. We hold multiple invention patents and have participated in drafting national and industry standards. With exports to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe, we maintain ISO 9001, ISO 14001, and ISO 45001 certifications.
T/T: 30% deposit, 70% balance before delivery from factory.
L/C: Available (L/C price is higher than T/T price)
We provide photos and video of the finished truck before final payment.
Available terms: EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP.
We primarily handle FOB, CIF, and DAF.
Standard delivery: 10-20 days after receiving advance payment.
Right-hand drive chassis require longer lead time than left-hand drive.
Exact timing depends on order specifics (detailed in contract).
Our experienced team ensures strict quality control following state special truck technical specifications.
All trucks undergo 100% testing before delivery.
Warranty: 12 months with free spare parts coverage.
• BV factory audit certified
• Option for third-party inspection
• 15+ years industry experience
• Comprehensive quality certifications
Our factory is located in Suizhou City, Hubei Province, China.
Travel options: Train or plane to Wuhan (capital of Hubei), followed by our arranged transportation.
We provide invitation letters upon request (requires your personal and company information).
