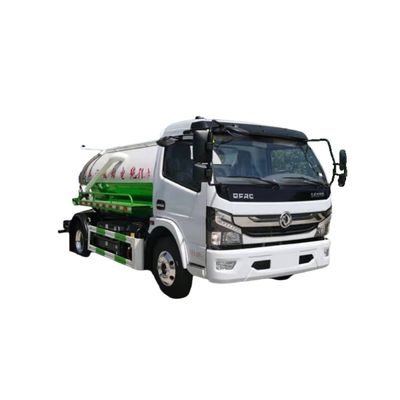

High Pressure Water Cleaning Pure Electric Vacuum Sewage Suction Truck
| MOQ: | 1 |
| Price: | $26,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
electric vacuum sewage suction truck
,high pressure water cleaning truck
,sanitation truck with vacuum suction
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure Electric Suction Vehicle | Product Model | HTT 5090GXWBEV |
| Gross Mass (Kg) | 8995 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 3940 | Outline Dimension (mm) | 3280*1300*1300 |
| Curb Weight (Kg) | 4860 | Axle Weight | 3000/5995 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 21/11 | Front Suspension / Rear Suspension (mm) | 1123/1977 |
| Wheel Base | 3300,3800 | Top Vehicle Speed (Km/h) | 90 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1090KACEV2 | Chassis Brand | Pure Electric Truck Chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 9.5R17.5 14PR,8.25R16LT 14PR | ||
| Number of Steel Plate Spring Sheets | 8/10+7 | ||
| Front Gauge (mm) | 1760 | Rear Track (mm) | 1640 |
| Fuel Types | Pure Electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde Era |
| Total Power Charge (kWh) | 121.1 | Rated / Peak Rotation Speed (rpm) | 5730/12000 |
| Motor Brand / Type | Suzhou Green Control | The Loading Consumes Power Per Hour | 20KWH |
| Power of Motor (kW) | 60/120 | Charging Method | Fast Charge |
| Platform Voltage (V) | 540 | Equistant Range (km) | ≥280 |
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. We are a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province - the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China.
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
T/T: 30% as deposit, and 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
(If you need the right hand drive chassis, delivery time is longer than Left hand drive truck. Detailed clauses are subject to contract.)
We have rich experience workers and engineers to control quality before and during production. We strictly follow STATE special trucks technical specification and safety production specification. We 100% test trucks before delivery.
Our Warranty: 12 months
We will provide the spare parts for free in one year.
Our company passed BV factory audit, and you can also arrange a third party to inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Our factory is located in Suizhou city, Hubei province, China.
You can take train or plane to arrive in Wuhan city (the capital of Hubei province, near our factory). Our driver will pick you up at Wuhan railway station or Wuhan Tianhe airport.
If you need an invitation letter, please send your private information and company information to us.
