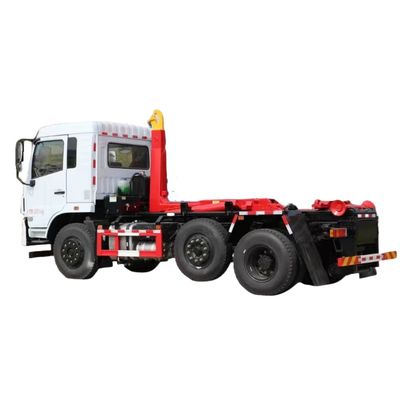

Fuel Type Diesel 3-22 Tons Trash Hook Lift Upper Body Structure DFAC Hook Lift Roll on Roll off Garbage Truck
| MOQ: | 1 |
| Price: | $17,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Brand Name
dongfeng
Condition:
New
Transmission Type:
Manual
Emission Standard:
EURO 5
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
6770 * 2500255 * 3000315, 0320
Gross Vehicle Weight:
18000
After-sales Service Provided:
Onsite Installation
Color:
Custom's Requirement
Highlight:
Diesel hook lift garbage truck
,3-22 ton trash hook lift
,Roll on roll off sanitation truck
Product Description
Fuel Type Diesel 3-22 Tons Trash Hook Lift Upper Body Structure DFAC Hook Lift Roll on Roll off Garbage Truck
Product Description
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product name | Garbage truck with removable compartment | Product Model | HTT5240ZXXST6 |
| Total mass (Kg) | 24500 | Production address | Suizhou City, Hubei Province |
| Rated load weight (Kg) | 15570155-05 | Overall dimensions (mm) | 6770 * 2500255 * 3000315, 0320 |
| Quality of preparation (Kg) | 8800 | Axle Load | 6500/6500/11500 |
| Number of people in the cab (people) | 2, 3 | Number of shafts | 3 |
| Approach Angle/departure Angle (。) | 15/19 | Front overhang/rear overhang (mm) | 1490/1330 |
| Wheelbase | 2700 + 1250290 + 1250330 + 1250360 + 1250380 + 1250400 + 1250500 + 1250300 + 1250 | Maximum speed (Km/h) | 88 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis model number | STQ1247L10Y3D6 | Chassis brand | Truck chassis |
| Number of shafts | 3 | Number of tires | 8 |
| Tire Specifications | 10.00 R20, 11 r22.5,10.00 R20 18 pr, 11 r22.5 18 pr | Number of leaf spring pieces | 9/7 + - / 10 + 8, 3/7 + - + 3/4 |
| Front wheel base (mm) | 1790187019702015182018351901920194 | Rear wheel base (mm) | 1790/17501940/18601880/18001810/17501920/18601920/18801940/1880 |
| Type of fuel | Diesel | Anti-lock braking system | Standard |
| Chassis wheelbase | 2700 + 1250290 + 1250330 + 1250360 + 1250380 + 1250400 + 1250500 + 1250300 + 1250 | Fuel Consumption | 32.5, 32.5, 32.5, 32.5, 32.5, 32.5 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine model | Displacement (ml) | Power (Kw) |
|---|---|---|
| WP4.6 NQ220E61A | 4580 | 162 |
| YCK05230-61 | 5132 | 169 |
| D47TCIF1 | 4714 | 169 |
| YCS06270-60 | 6234 | 199 |
| YCS06245-60 | 6234 | 180 |
| YCS04240-66 | 4295 | 173 |
After-sales Service
If there is an after-sales problem, contact our customer service staff immediately. We will arrange personnel to resolve the issue for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. It is a "national high-tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province - the hometown of Yan Emperor and ancient music of chimes, and the capital of special trucks in China.
Main products include: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series, sanitation vehicle series, special vehicle parts series, and used truck trading.
We have professional technical team, strong management team, and efficient domestic and overseas sales team. Our products lead the domestic advanced level and serve international markets with diversified and serialized product patterns.
Certifications: GB/T19001-2016 (ISO9001:2015), GB/T24001-2016 (ISO14001:2015), GB/T45001-2020 (ISO45001:2018), international 3C compulsory certificate, tank container CCS certificate, and multiple invention patents.
Our products have been exported to Africa, Middle East, Southeast Asia, America, Europe and more than 30 countries, receiving favorable reviews from domestic and foreign users.
Manufacturing Technique
Certifications
Customer Photos
Project Show
Product Packaging
Frequently Asked Questions
Q1. Payment term.
T/T: 30% deposit, 70% before delivery from factory. L/C: L/C price is higher than T/T price. We will show photos and video of the finished truck before balance payment.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc. We mainly do FOB, CIF, DAF.
Q3. Delivery time
Generally 10-20 days after receiving advance payment. Specific time depends on order items and quantity. Right hand drive chassis require longer delivery time than left hand drive trucks.
Q4. Quality and warranty
Experienced workers and engineers control quality during production. We follow state special trucks technical specifications and safety standards, with 100% testing before delivery. Warranty: 12 months with free spare parts.
Q5. How to trust us?
Our company passed BV factory audit. You can arrange third party inspection. We have over 15 years experience in truck manufacturing.
Q6. Visit our factory
Our factory is in Suizhou City, Hubei Province. You can travel to Wuhan (capital of Hubei) by train or plane, and we will arrange pickup from Wuhan railway station or Tianhe airport. We can provide invitation letter upon request.
