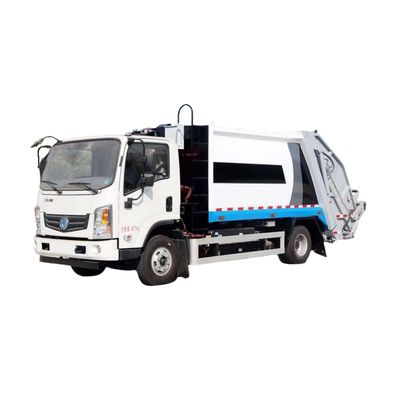

Dongfeng 5083ZYSBEV Pure Electric Compression Truck for Waste Collection Solutions
| MOQ: | 1 |
| Price: | $25,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Dust Suppression Vehicle
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
Dongfeng 5083ZYSBEV electric waste truck
,pure electric compression garbage truck
,sanitation cleaning truck with warranty
Product Description
Dongfeng 5083ZYSBEV Pure Electric Compression Truck for Waste Collection Solutions
Product Description
Technical Specifications
| Vehicle Technical Parameters | |||
|---|---|---|---|
| Product Name | Pure electric compressed type garbage truck | Product Model | HTT 5083ZYSBEV |
| Gross Mass (Kg) | 8270 | Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 1925 | Outline Dimension (mm) | 7850,7015×2250,2100×2880,2650 |
| Curb Weight (Kg) | 6150 | Axle Weight | 3000/5270 |
| Number of Cab Members (person) | 2,3 | Number of Axles | 2 |
| Approach Angle / Departure Angle (°) | 19/8,19/10 | Front Suspension / Rear Suspension (mm) | 1175/2425,1175/2140 |
| Wheel Base | 3300,3850 | Top Vehicle Speed (Km/h) | 85 |
| Chassis Technical Parameters | |||
|---|---|---|---|
| Chassis Model | EQ1080TTZEVJ1 | Chassis Brand | Pure electric truck chassis |
| Number of Axles | 2 | Number of Tires | 6 |
| Tyre Size | 7.50R16LT 14PR,215/75R17.5 16PR | ||
| Number of Steel Plate Spring Sheets | 6/6+5,6/8+4,3/3,7/6+5,7/8+4,3/3+3 | ||
| Front Gauge (mm) | 1730,1683,1710,1760 | Rear Track (mm) | 1590 |
| Fuel Types | Pure electric | ABS | Have |
| Chassis Wheelbase | 3300,3850 | Battery Brand | Ningde era |
| Maximum Power of the Chassis Motor | 135 KW | Rated Power of the Mounted Motor | 30KW |
| Battery Pack Rated Voltage | 521 V | The Loading Consumes Power Per Hour | 20KWH |
| Battery Capacity | 106 KWH | Charging Pile Power is Recommended | 120KW |
| Chassis Full Load of Range | 280 KM | Charging Time (under the recommended power) | About 1 hour |
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. As a national high-tech enterprise and SRDI enterprise, we specialize in:
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
Our products have passed international 3C compulsory certification and tank container CCS certification, with multiple invention patents. We participate in drafting national and industry standards.
Manufacturing Technique
Certifications
Customer Photos
Project Show
Product Packaging
Frequently Asked Questions
Q1. Payment term
T/T: 30% deposit, 70% before delivery from factory.
L/C: L/C price is higher than T/T price
We will show photos and video of the finished truck before balance payment.
L/C: L/C price is higher than T/T price
We will show photos and video of the finished truck before balance payment.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc.
We mainly do FOB, CIF, DAF.
We mainly do FOB, CIF, DAF.
Q3. Delivery time
Generally 10-20 days after receiving advance payment. Specific time depends on order items and quantity.
(Right hand drive chassis requires longer delivery than left hand drive. Detailed clauses subject to contract.)
(Right hand drive chassis requires longer delivery than left hand drive. Detailed clauses subject to contract.)
Q4. Quality and warranty
We strictly follow state special trucks technical specifications with 100% testing before delivery.
Warranty: 12 months with free spare parts during warranty period.
Warranty: 12 months with free spare parts during warranty period.
Q5. How to trust us?
Our company passes BV factory audit. You can arrange third party inspection.
15+ years experience in truck manufacturing and export.
15+ years experience in truck manufacturing and export.
Q6. Visit our factory
Located in Suizhou City, Hubei Province, China.
We provide pickup service from Wuhan railway station or Tianhe airport.
Invitation letters available upon request with your information.
We provide pickup service from Wuhan railway station or Tianhe airport.
Invitation letters available upon request with your information.
