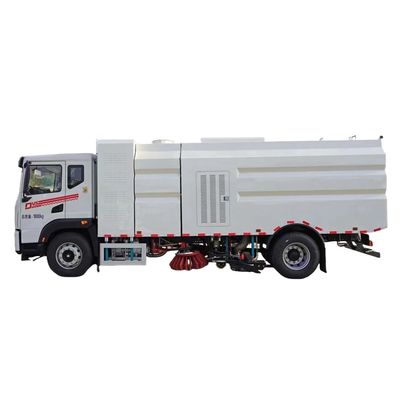

15cbm Electric Dongfeng 4x2 High Pressure Pure Suction Street Cleaning Truck
| MOQ: | 1 |
| Price: | $24,000/units 1-9 units |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7-30 days |
| Payment Method: | T/T |
| Supply Capacity: | Meet large-scale orders |
Detail Information
Place of Origin
Hubei, China
Product Name:
Electric Garbage Truck
Energy Type:
Pure Electric
Color:
Custom's Requirement
Highlight:
Electric Dongfeng street cleaning truck
,High pressure suction sanitation truck
,4x2 pure suction cleaning vehicle
Product Description
15cbm Electric Dongfeng 4x2 High Pressure Pure Suction Street Cleaning Truck
Product Parameters
Vehicle Technical Parameters
| Parameter | Value |
|---|---|
| Product Name | Pure electric Washing and sweeping vehicle |
| Product Model | HTT5185TXSBEV |
| Total Mass (Kg) | 18000 |
| Production Address | Suizhou City, Hubei Province |
| Rated Load Mass (Kg) | 4305,4370,5005,5070 |
| Outline Dimension (mm) | 9500,9200×2550×3320 |
| Curb Weight (Kg) | 13500,12800 |
| Axle Weight | 6500/11500 |
| Number of People in Cab | 2,3 |
| Number of Axles | 2 |
| Approach/Departure Angle (°) | 20/10 |
| Front/Rear Suspension (mm) | 1400/2500 |
| Wheel Base | 5600,5300 |
| Top Vehicle Speed (Km/h) | 90,89 |
| Upper Volume | 8 water / 7 dust |
Chassis Technical Parameters
| Parameter | Value |
|---|---|
| Chassis Model | CA1180P62L3BEV |
| Chassis Brand | Liberation card |
| Number of Axles | 2 |
| Number of Tires | 6 |
| Tire Size | 295/80R22.5,10.00R20 |
| Number of Steel Plate Spring Sheets | 12/12+8,10/9+7 |
| Front Gauge (mm) | 1946 |
| Rear Track (mm) | 1878 |
| Fuel Types | Pure electric |
| ABS | Yes |
| Chassis Wheelbase | 5300mm |
| Battery Brand | Ningde era |
| Battery Capacity | 281.92KWH |
| Charging Time | About 2.5 hours |
| Battery Category | Lithium iron phosphate |
| Full Range | 365 KM |
| Battery Pack Rated Voltage | 618.24V |
| Charging Pile Power Recommendation | 120KW |
| Maximum Power of Chassis Motor | 160KW |
| Rated Power of Mounted Motor | 80 KW |
| Upload Consumes Power Per Hour | 40-50KWH |
Engine Specifications
| Engine Type | Displacement (ml) | Power (Kw) | Horsepower |
|---|---|---|---|
| TZ370XS-LKM1101 | - | 160 | 218 |
After-sales service: If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. We are a "National High-Tech" enterprise and "SRDI" enterprise.
Founded in February 2009 and located in Suizhou, Hubei province - the hometown of Yan Emperor and ancient music of chimes, and known as the capital of special trucks in China.
Main Products
- Dangerous goods tank truck series
- Tank container series
- Chemical storage tank series
- Dangerous goods van series
- Refrigerated truck series
- Testing vehicle series
- Emergency rescue vehicle series
- Engineering vehicle series
- Sanitation vehicle series
- Special vehicle parts series
- Used truck trading
We have professional technical team, strong management team, and efficient domestic and overseas sales team. Our products lead the domestic advanced level and serve international markets with diversified and serialized product patterns.
Certifications
- GB/T19001-2016 idt ISO9001:2015 quality system certificate
- GB/T24001-2016 idt ISO14001:2015 environmental system certificate
- GB/T45001-2020 idt ISO45001:2018 occupation health safety system certificate
- International 3C compulsory certificate
- Tank container CCS certificate
- Multiple invention patents
We participate in drafting national and industry standards, adhering to the business philosophy of "Create industry quality products. Strive to be an industry pioneer". Our products have been exported to over 30 countries across Africa, Middle East, Southeast Asia, America, and Europe.
Frequently Asked Questions
Q1. Payment terms
- T/T: 30% deposit, 70% before delivery from factory
- L/C: L/C price is higher than T/T price
- We provide photos and video of finished truck before balance payment
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc. We mainly handle FOB, CIF, DAF.
Q3. Delivery time
Typically 10-20 days after receiving advance payment. Exact time depends on order items and quantity. Right-hand drive chassis require longer lead time than left-hand drive. Detailed clauses subject to contract.
Q4. Quality and warranty
- Experienced workers and engineers ensure quality control during production
- Strict compliance with state special trucks technical and safety specifications
- 100% testing before delivery
- 12-month warranty with free spare parts within warranty period
Q5. How to trust us?
- BV factory audit certified
- Option for third-party factory inspection
- 15+ years experience in truck manufacturing
Q6. Visit our factory
Our factory is located in Suizhou City, Hubei Province, China. Visitors can travel to Wuhan City (capital of Hubei Province) by train or plane, and we provide pickup service from Wuhan Railway Station or Wuhan Tianhe Airport.
Invitation letters available upon request with your personal and company information.
